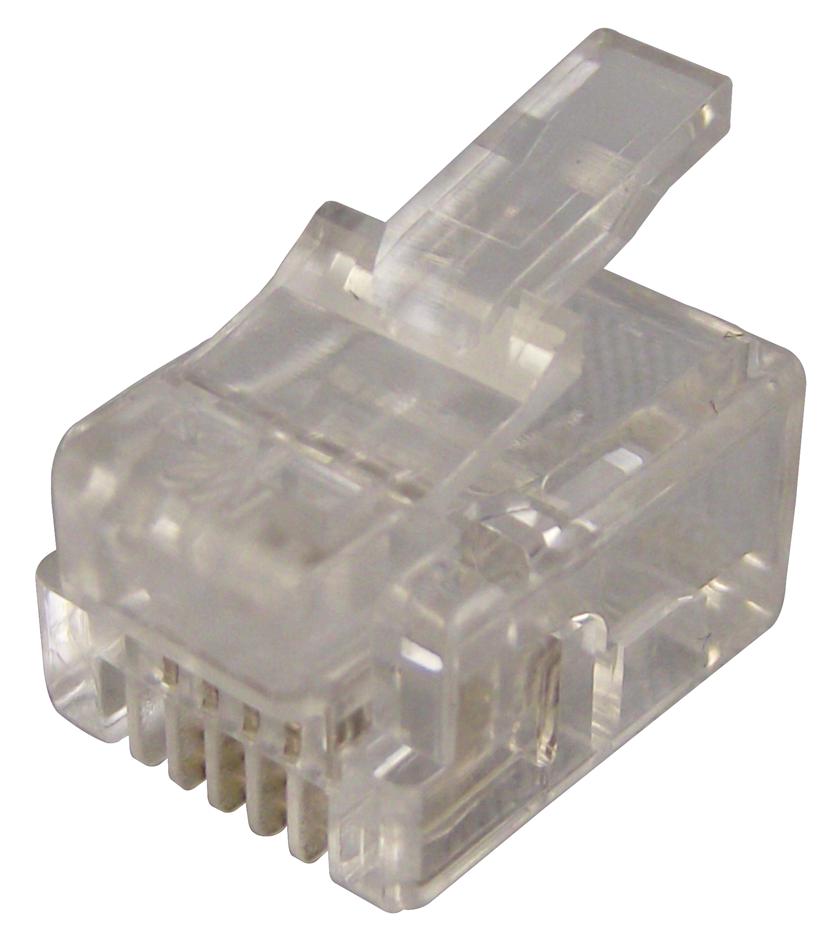

MULTICOMP PRO - 7001-6P4C - Modular Connector, RJ11 Plug, 1 x 1 (Port), 6P4C, Cable Mount
- Modular Connector Type: RJ11 Plug
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 6P4C
- LAN Category: -
- IP Rating: -
- Connector Mounting: Cable Mount
- Connector Orientation: Vertical
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Type: RJ11
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: IDC / IDT
- Contact Termination Type: IDC / IDT
- Current Rating: 1A
- Flammability Rating: UL94V-2
- Gender: Plug
- Insulation Resistance: 1000Mohm
- No. of Contacts: 4Contacts
- No. of Ports: 1Ports
- No. of Positions: 6Ways
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 150V
- Withstand Voltage: 500V
