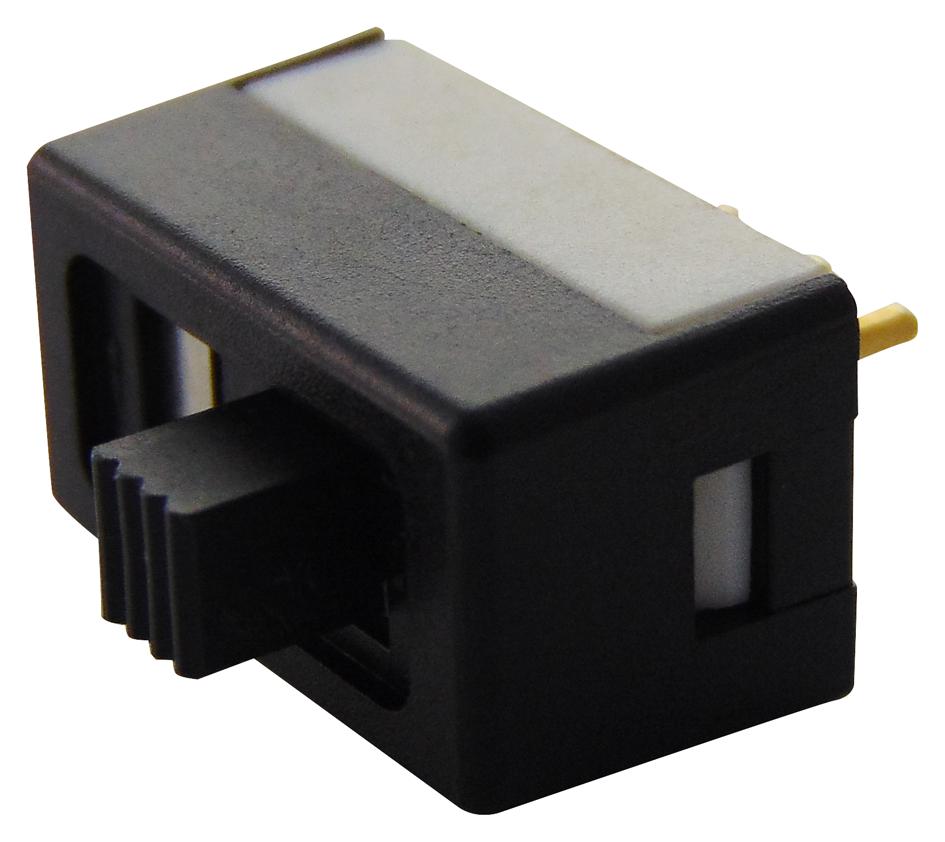

MULTICOMP PRO - 6MS1S2M1RE - Slide Switch, SPDT, On-On, Through Hole, Top Actuator, 100 mA, 20 V
- Contact Configuration: SPDT
- Switch Operation: On-On
- Switch Mounting: Through Hole
- Product Range: Top Actuator Series
- Contact Current Max: 100mA
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- Orientation: Vertical
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Raised
- Actuator Type: Raised Slide
- Contact Current AC Max: 20mA
- Contact Current DC Max: 20mA
- Contact Voltage AC Min: 20mV
- Contact Voltage DC Min: 20mV
- External Depth: 7.8mm
- External Length / Height: 7.7mm
- External Width: 14mm
- Insulation Resistance: 1000Mohm
- Lever Length: 2.8mm
- Switching Current AC Min: 10mA
- Switching Current DC Min: 10mA
- Termination Method: Through Hole
