66505-9 Crimp Socket, 28-24AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :66505-9 Code de commande:593229

Prix:
Prix ​​promotionnel€0,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19098 unité)

Documents et téléchargements

description

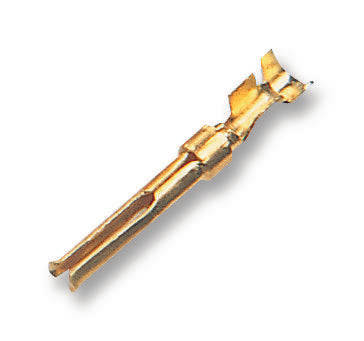

AMP - TE CONNECTIVITY - 66505-9 - D Sub Contact, HDP-20 Series Connectors, Socket, Brass, Gold Plated Contacts, 24 AWG, 28 AWG

  • For Use With: HDP-20 Series Connectors
  • Contact Gender: Socket
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Wire Size AWG Max: 24AWG
  • Wire Size AWG Min: 28AWG
  • Contact Termination Type: Crimp
  • Product Range: AMPLIMITE HDP-20 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 1.02mm
  • Cable Diameter Min: 0.03"
  • Contact Resistance: 15mohm
  • Contact Termination: Crimp
  • Contact Type: Stamped
  • Current Rating: 7.5A
  • Gender: Receptacle
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Wire Area Size Max: 0.2m²
  • Wire Area Size Min: 0.08m²
  • Wire Size: 24AWG
  • Wire Size (AWG): 28AWG to 24AWG
