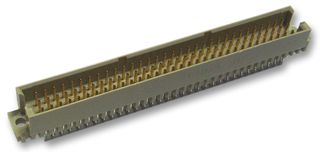

AMP - TE CONNECTIVITY - 650889-5 - DIN 41612 Connector, 96 Contacts, Plug, 2.54 mm, 3 Row, a + b + c
- Product Range: -
- No. of Contacts: 96Contacts
- Gender: Plug
- Pitch Spacing: 2.54mm
- No. of Rows: 3 Row
- Rows Loaded: a + b + c
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- No. of Mating Cycles: 400
- SVHC: Lead (15-Jan-2019)
- Colour: Grey
- Connector Mounting Orientation: Vertical
- Contact Resistance: 15mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Gohm
- Lead Spacing: 2.54mm
- Material: Glass Filled Polyester
- No. of Rows: 3Rows
- Row Pitch: 2.54mm
- Standard: DIN 41652 Level 2
- Termination Method: Through Hole
- Voltage Rating VAC: 250V
