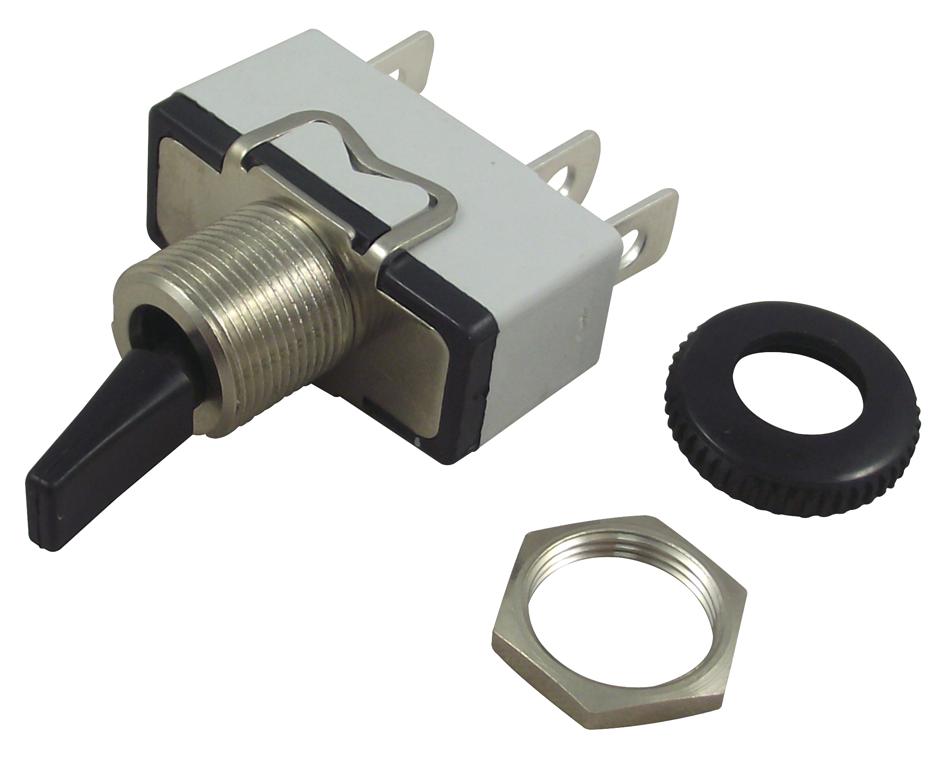

APEM - 636NH/2 - Toggle Switch, On-On, SPDT, Non Illuminated, 600, Panel Mount, 15 A
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 600 Series
- Contact Current Max: 15A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Quick Connect, Solder
- Contact Voltage DC Nom: 24V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Flat Lever
- Approval Bodies: CSA, UL
- Bush Thread Length: 11.5mm
- Contact Current @ Contact Voltage AC Max: 15A
- Contact Current @ Contact Voltage DC Max: 10A
- Contact Current AC Max: 15A
- Contact Current DC Max: 10A
- Contact Current Rating: 15A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 24V
- External Depth: 29.5mm
- External Length / Height: 15mm
- External Width: 14mm
- Height: 15mm
- Insulation Resistance: 1000Mohm
- Lever Length: 13.5mm
- No. of Electrical Operations: 10000
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Proof Voltage: 2500V
- Tab Blade Thickness: 0.8mm
- Tab Width: 6.35mm
- Thread Size: 12X0.75SI
