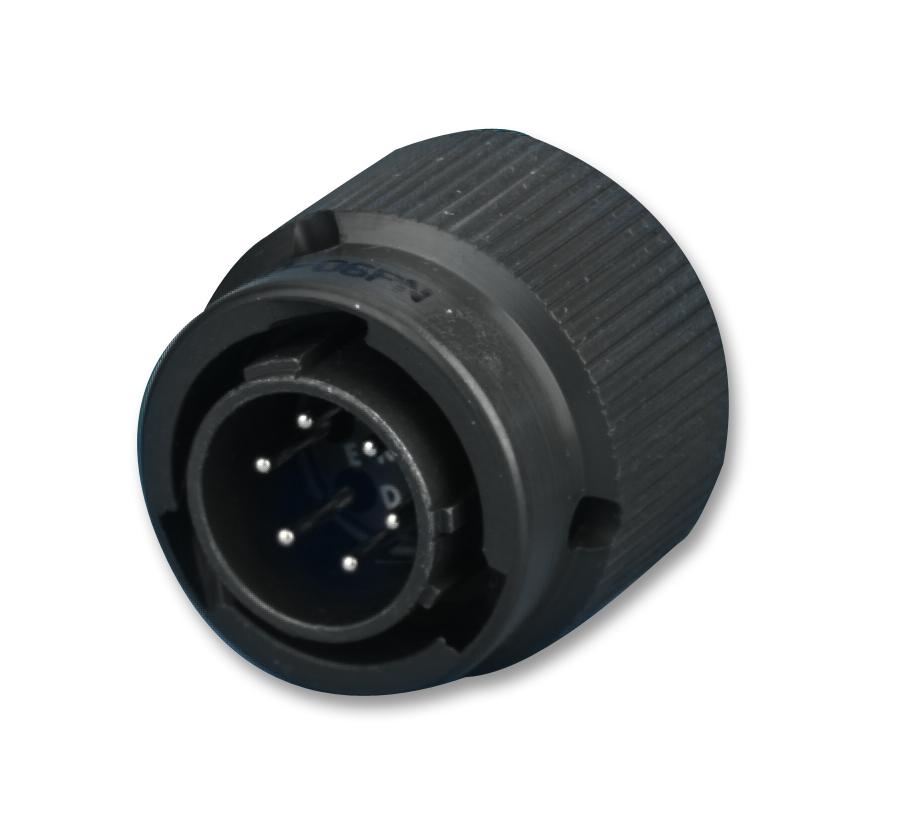

AMPHENOL LTD - 62GB-56T16-08PN - Circular Connector, 62GB, Straight Plug, 8 Contacts, Solder Pin, Bayonet, 16-8
- Product Range: 62GB Series
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 8Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Bayonet
- Insert Arrangement: 16-8
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Zinc
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: General Duty
- Equivalent Military Specification: MIL-DTL-26482 Series
- SVHC: No SVHC (15-Jun-2015)
- Approval Category: BS 9522 F0017
- Colour: Olive Drab
- Connector Insert Type: 16-8
- Connector Mounting: Cable Mount
- Connector Shell Size: 16-08
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 13A
- Current per Contact Max: 13A
- Gender: Plug
- IP / NEMA Rating: IP67
- Insulation Resistance: 5000Mohm
- Moulding Material: Aluminium Alloy
- Operating Temperature Max: 125°C
- Proof Voltage: 2100VDC
