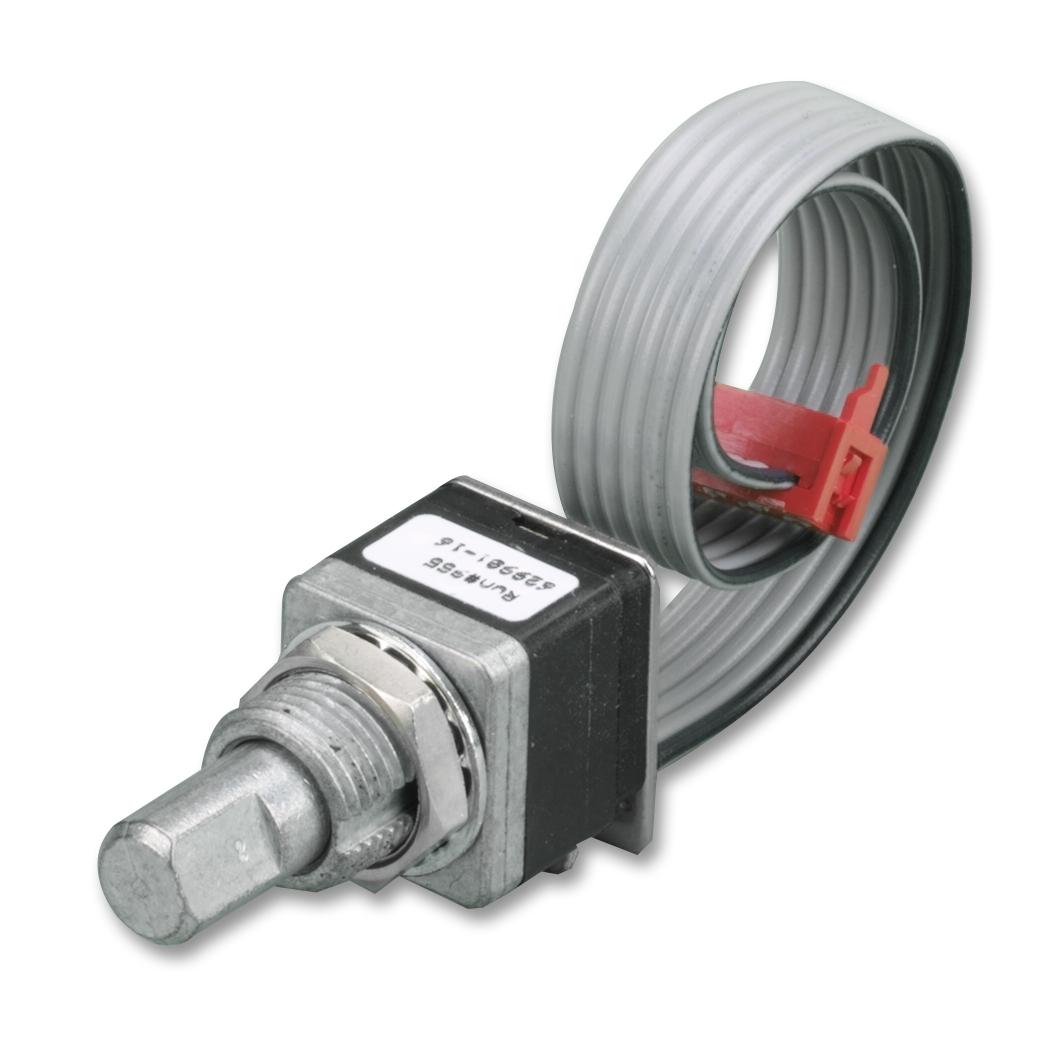

GRAYHILL - 62A22-02-060C - Rotary Encoder, Optical, Incremental, 16 PPR, 16 Detents, Vertical, With Push Switch
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5V
- No. of Channels: 2Channels
- Rotational Speed Max: 100rpm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Case Material: Reinforced thermoplastic
- Connector Type: Cable
- Contact Resistance: 10ohm
- Contact Voltage DC Max: 5V
- Encoder Resolution: 16
- External Depth: 30.78mm
- External Length / Height: 13.72mm
- External Width: 12.7mm
- Fixing Hole Diameter: 9.35mm
- Lead Length: 6"
- No. of Pins: 6Pins
- No. of Pulses Per Revolution: 16CPR
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Pitch Spacing: 1.27mm
- Rotation Mechanical Angle: 22.5°
- Rotational Life Cycles: 1000000
- Rotational Speed: 100rpm
- Shaft Diameter: 6.35mm
- Shaft Length: 9.52mm
- Socket Type: AMP 215083-6 micro-match connector
- Supply Current: 30mA
- Supply Voltage V DC: 5V
- Thread Length: 7.92mm
- Thread Size: 38-32 UNEF-2A
- Torque: 0.014123104N-m
- Type: ½" Package, with Push Button
