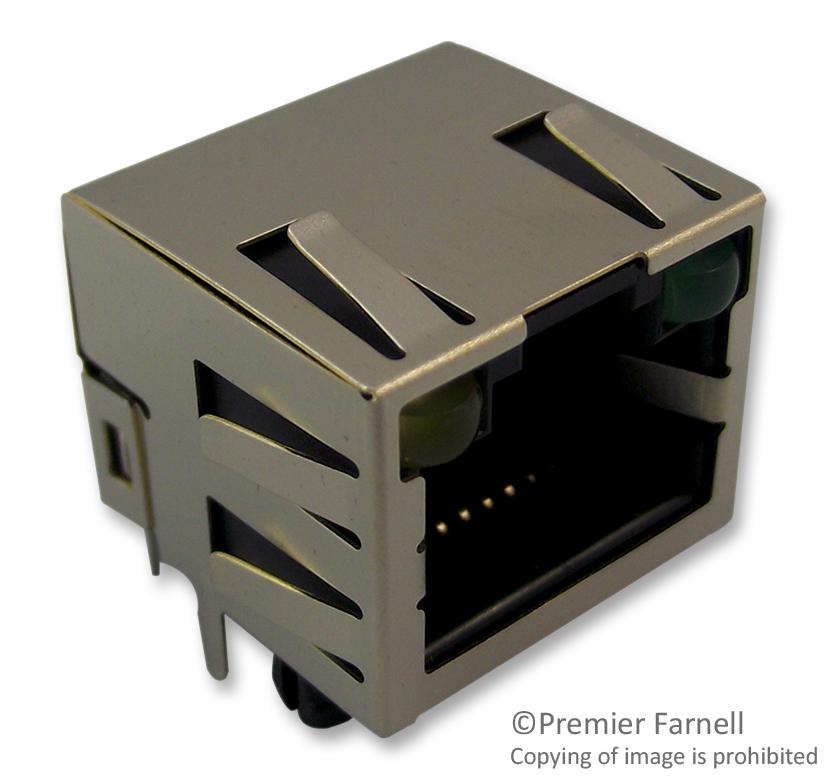

WURTH ELEKTRONIK - 615008137421 - Modular Connector, Modular Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole Mount
- Modular Connector Type: Modular Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat5
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Right Angle
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: With LED
- Light Pipes: Without Light Pipe
- Product Range: WR-MJ Series
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Connector Type: RJ45
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- Flammability Rating: UL94V-0
- Gender: Jack
- Insulation Resistance: 500Mohm
- No. of Contacts: 8Contacts
- No. of Mating Cycles: 500
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Termination Method: Solder
- Withstand Voltage: 1000V
- Working Voltage: 120V
