615006138521 Jack, RJ11, Vert, 6P6C Wurth Elektronik

WURTH ELEKTRONIKUGS :615006138521 Code de commande:1642041

Prix:
Prix ​​promotionnel€1,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1961 unité)

Documents et téléchargements

description

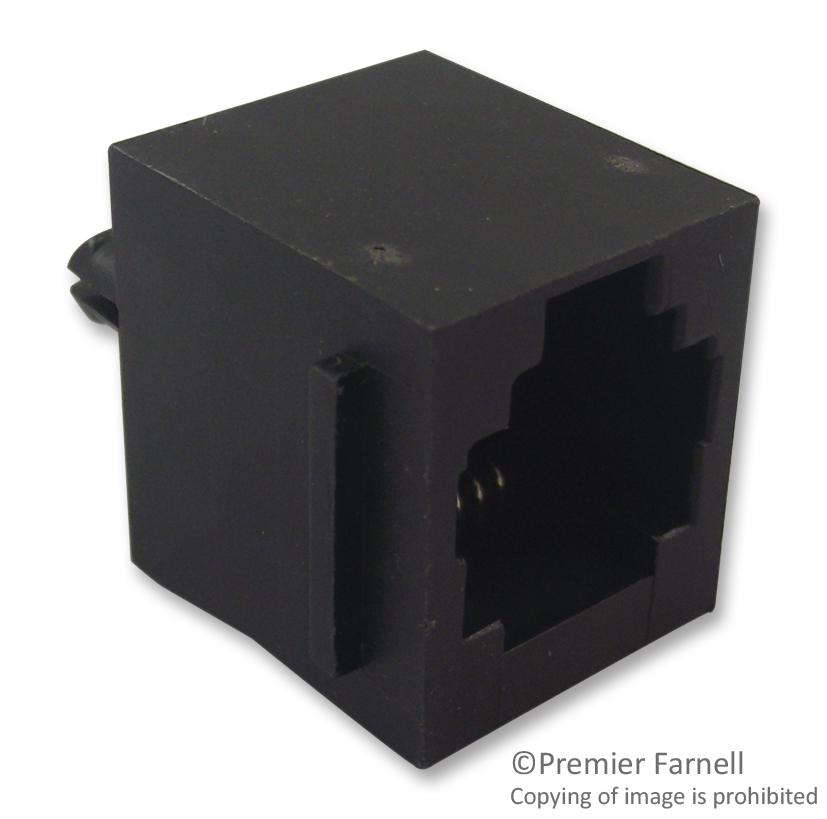

WURTH ELEKTRONIK - 615006138521 - Modular Connector, Modular Jack, 1 x 1 (Port), 6P6C, Through Hole Mount

  • Modular Connector Type: Modular Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 6P6C
  • LAN Category: -
  • IP Rating: -
  • Connector Mounting: Through Hole Mount
  • Connector Orientation: Vertical
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: WR-MJ Series
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Connector Type: RJ11
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • Current Rating: 1.5A
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Insulation Resistance: 500Mohm
  • No. of Contacts: 6Contacts
  • No. of Mating Cycles: 500
  • No. of Ports: 1Ports
  • No. of Positions: 6Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Termination Method: Solder
  • Withstand Voltage: 1000V
  • Working Voltage: 120V
