609-1312-130F LED Indicator, Prom, 12VDC, Yellow DIALIGHT

DIALIGHTUGS :609-1312-130F Code de commande:1138353

Prix:
Prix ​​promotionnel€9,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (176 unité)

Documents et téléchargements

description

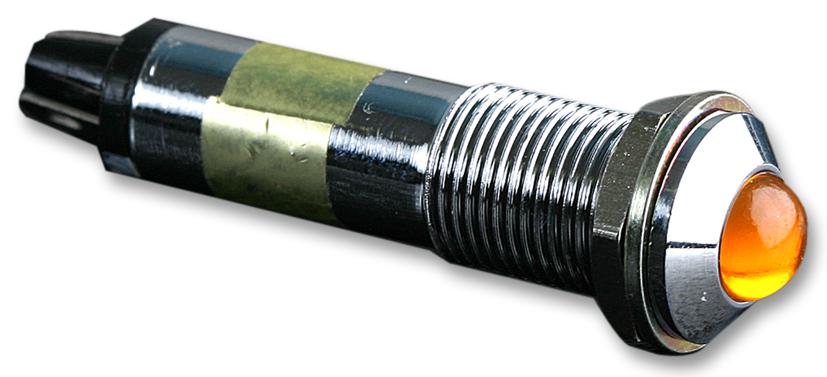

DIALIGHT - 609-1312-130F - LED Panel Mount Indicator, Yellow, 12 VDC, 9.3 mm, 15 mA, 90 mcd, IP66

  • LED Colour: Yellow
  • Operating Voltage: 12VDC
  • Mounting Hole Dia: 9.3mm
  • Forward Current If: 15mA
  • Luminous Intensity: 90mcd
  • IP / NEMA Rating: IP66
  • Product Range: 609 Series
  • SVHC: No SVHC (15-Jun-2015)
  • Body Plating: Chrome
  • External Depth: 30.99mm
  • External Diameter: 10.92mm
  • Fixing Hole Diameter: 9mm
  • Forward Current If Max: 15mA
  • Forward Voltage: 12V
  • Forward Voltage VF Max: 12V
  • LED Segment Depth: 5.08mm
  • Lens Diameter: 6.1mm
  • Luminous Intensity Typ: 90mcd
  • Material: Brass
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Panel Cutout Diameter: 9.3mm
  • Panel Thickness Max: 7.5mm
  • Supply Voltage V DC: 12V
  • Thread Size: M9
  • Voltage Vf Typ: 12V
