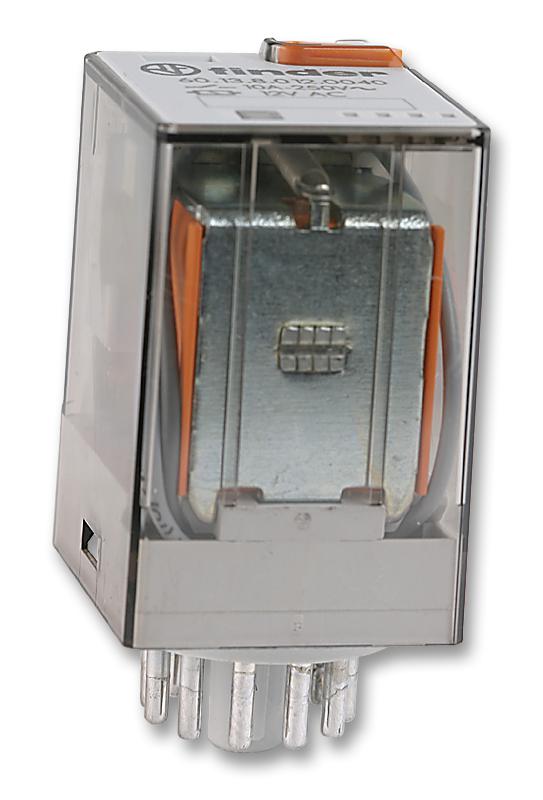

FINDER - 60.13.8.024.0040 - General Purpose Relay, 60 Series, Power, 3PDT, 24 VAC, 10 A
- Contact Configuration: 3PDT
- Coil Voltage: 24VAC
- Contact Current: 10A
- Product Range: 60 Series
- Relay Mounting: Socket
- Coil Type: AC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: 74ohm
- SVHC: No SVHC (15-Jan-2019)
- AC Coil Power: 2.2VA
- Approval Bodies: BEAB, BSI, CSA, DEMKO, IMQ, RINA, SEMKO, SETI, UL, VDE
- Approvals & Standards: CE, CSA, UL, VDE
- Coil Current: 90mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VAC Nom: 24V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 20A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Dielectric Strength VDC: 2000V
- External Depth: 36.2mm
- External Height: 51mm
- External Length / Height: 51mm
- External Width: 32.5mm
- Nom Operating Power: 2.2VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 9ms
- Relay Type: Power - General Purpose
