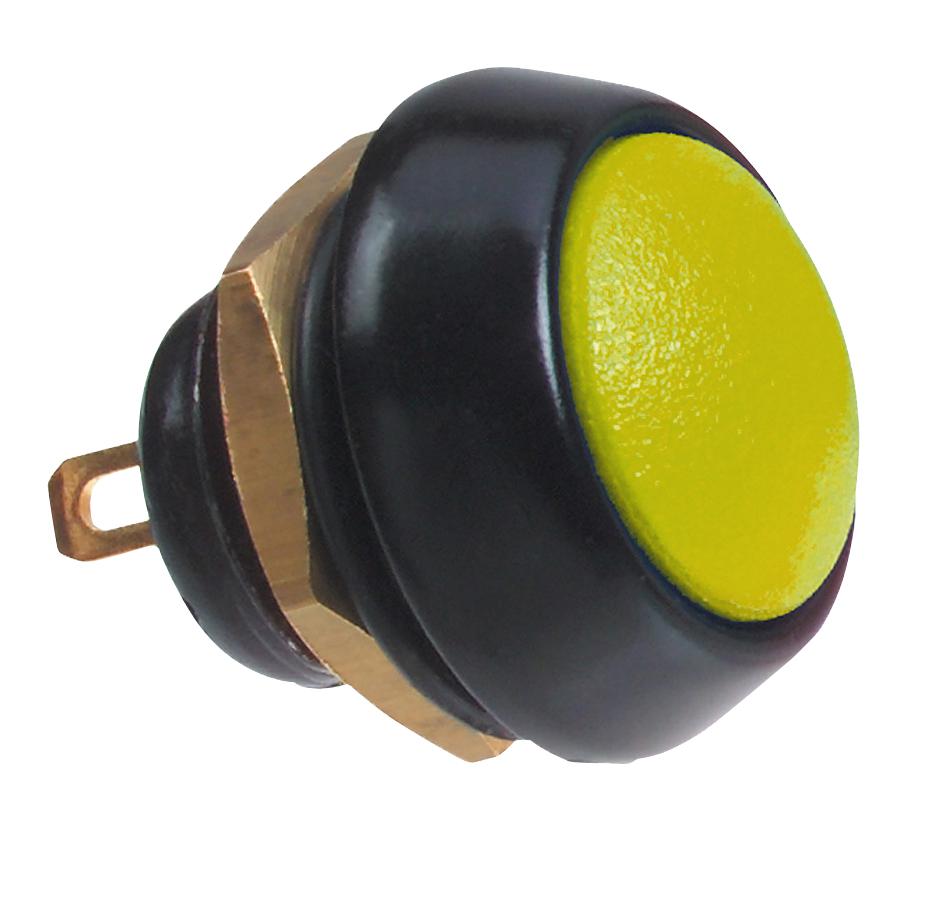

ITW SWITCHES - 59-115 - Industrial Pushbutton Switch, 59, 13.6 mm, SPST-NO-DB, Momentary, Round, Yellow
- Switch Operation: Momentary
- Contact Configuration: SPST-NO-DB
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 50V
- Contact Current Max: 400mA
- Switch Terminals: Solder Lug
- Product Range: 59 Series
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Round
- Actuator / Cap Colour: Yellow
- Behind Panel Depth: 13mm
- Bezel Diameter: 17.45mm
- Colour: Yellow
- Contact Current @ Contact Voltage AC Max: 0.125A
- Contact Current @ Contact Voltage DC Min: 0.1A
- Contact Current AC Max: 400mA
- Contact Current DC Max: 100mA
- Contact Resistance: 50mohm
- Contact Voltage VAC: 32V
- Contact Voltage VDC: 50V
- Dielectric Strength VDC: 1000V
- External Length / Height: 20mm
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 13.6mm
- Panel Thickness Max: 3mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
