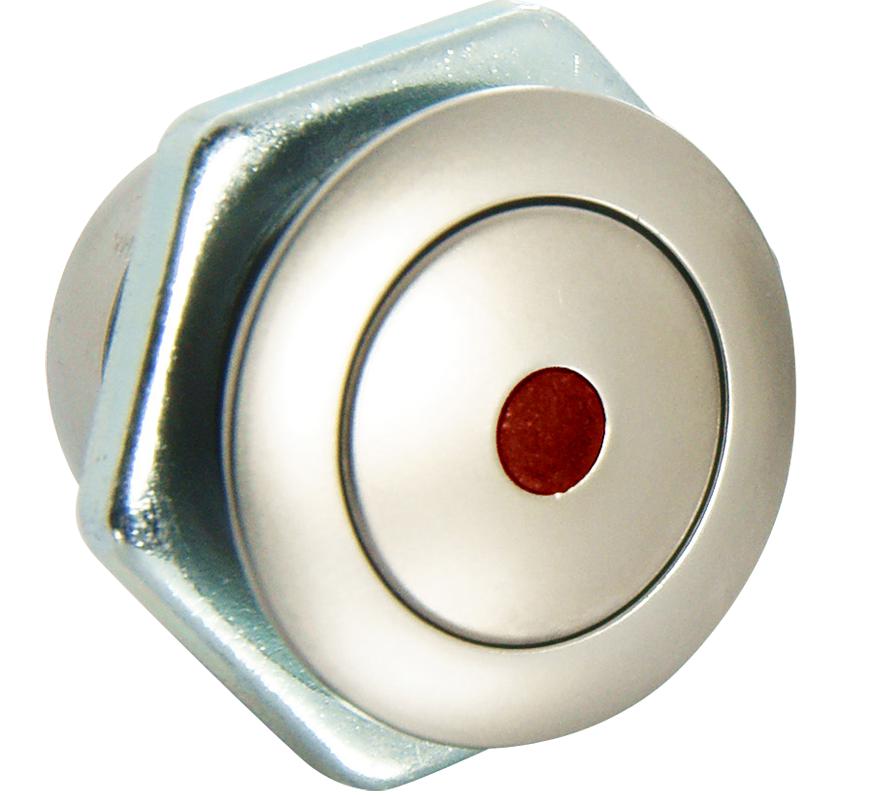

ITW SWITCHES - 57-112R - Vandal Resistant Switch, 57, 16.1 mm, SPST-NO-DB, Momentary, Round, Natural
- Product Range: 57 Series
- Contact Configuration: SPST-NO-DB
- Switch Operation: Momentary
- Contact Current Max: 400mA
- Contact Voltage AC Nom: 125V
- Illumination Colour: Red
- Contact Voltage DC Nom: 50V
- Switch Terminals: Solder Lug
- SVHC: No SVHC (17-Dec-2015)
- Actuator / Cap Colour: Natural
- Behind Panel Depth: 28mm
- Contact Current AC Max: 400mA
- Contact Current DC Max: 100mA
- Contact Resistance: 50mohm
- Contact Voltage VAC: 32V
- Contact Voltage VDC: 50V
- Current Rating: 100mA
- Double Flat Panel Cut-out Diameter: 14.9mm
- External Depth: 28mm
- External Diameter: 18.5mm
- External Length / Height: 30.45mm
- IP / NEMA Rating: IP67
- IP Rating: IP67
- Insulation Resistance: 1000Mohm
- LED Colour: Red
- LED Current: 20mA
- LED Voltage: 2.2V
- Luminous Intensity Typ: 100mcd
- Material: Zinc Alloy
- No. of Mechanical Operations: 1000000
- Operating Force: 3N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -35°C
- Panel Cutout Diameter: 16.1mm
- Panel Thickness Max: 3mm
- Pushbutton Actuator Style: Round
