568-0102-222F LED, Pcb, 3mm, G-G-G-G DIALIGHT

DIALIGHTUGS :568-0102-222F Code de commande:1519459

Prix:
Prix ​​promotionnel€5,79

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (634 unité)

Documents et téléchargements

description

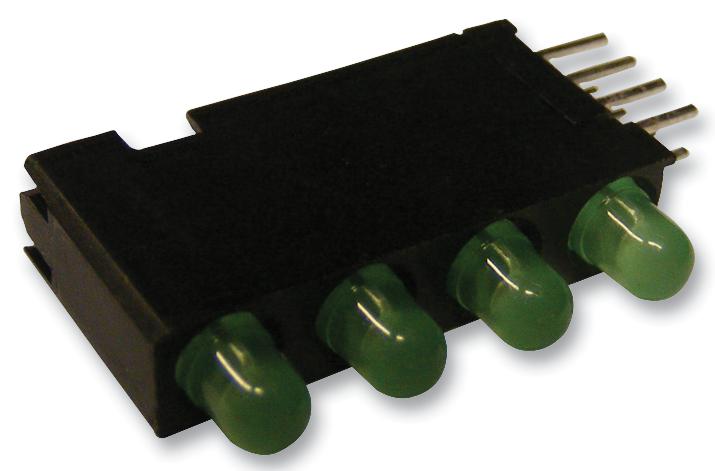

DIALIGHT - 568-0102-222F - Circuit Board Indicator, Green, 4 LEDs, Through Hole, T-1 (3mm), 10 mA, 12.6 mcd

  • LED Colour: Green
  • No. of LEDs: 4LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 10mA
  • Luminous Intensity: 12.6mcd
  • Forward Voltage: 2.1V
  • Viewing Angle: 60°
  • Height: 20.32mm
  • Width: 4.32mm
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • Display Size: 4.32mm x 20.32mm
  • Forward Current If Max: 10mA
  • Forward Voltage VF Max: 2.1V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Standard
  • Lens Shape: Round
  • Luminous Intensity Typ: 12.6mcd
  • No. of Pins: 8Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
