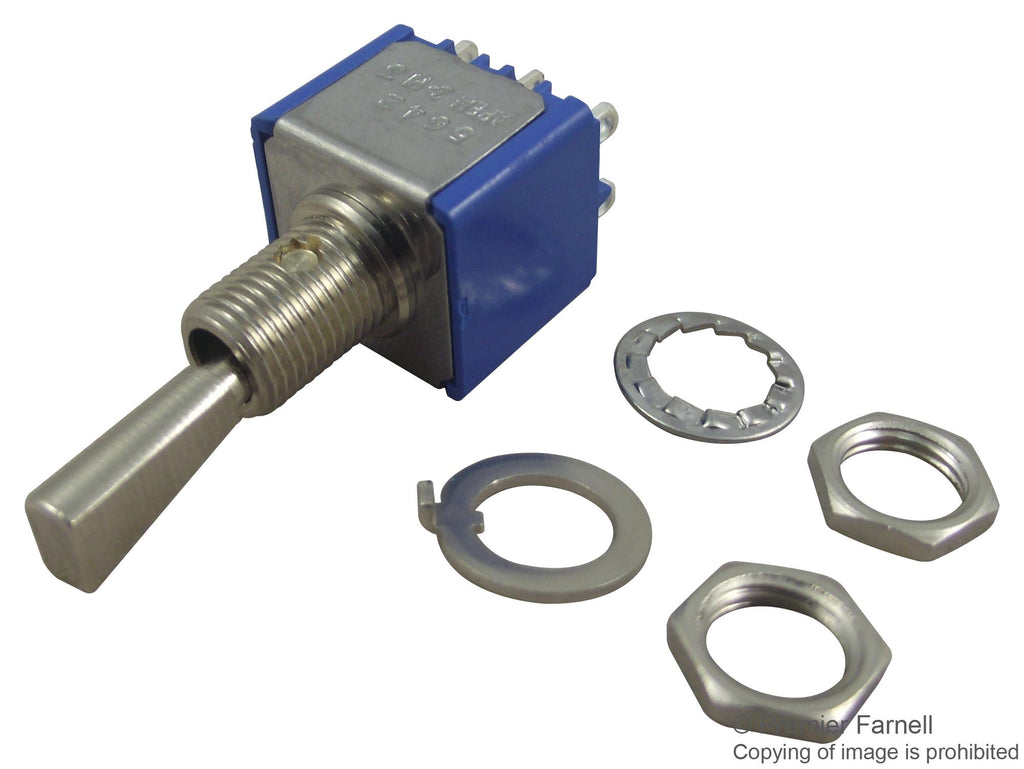

APEM - 5642A9 - Toggle Switch, On-(On), DPDT, Non Illuminated, 5000 Series, Panel Mount, 6 A
- Switch Operation: On-(On)
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: 5000 Series
- Contact Current Max: 6A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 30V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Flat Lever
- Bush Thread Length: 8mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 8A
- Contact Current AC Max: 6A
- Contact Current DC Max: 4A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Dielectric Strength VDC: 1kV
- External Depth: 13.2mm
- External Length / Height: 12mm
- External Width: 12mm
- Height: 12mm
- Lever Length: 11.6mm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 100000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Tab Blade Thickness: 0.5mm
- Thread Size: 1/4 x 40UNS
