564-0200-132F LED, Pcb, 3mm, R-Y-G DIALIGHT

DIALIGHTUGS :564-0200-132F Code de commande:1519455

Prix:
Prix ​​promotionnel€5,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (149 unité)

Documents et téléchargements

description

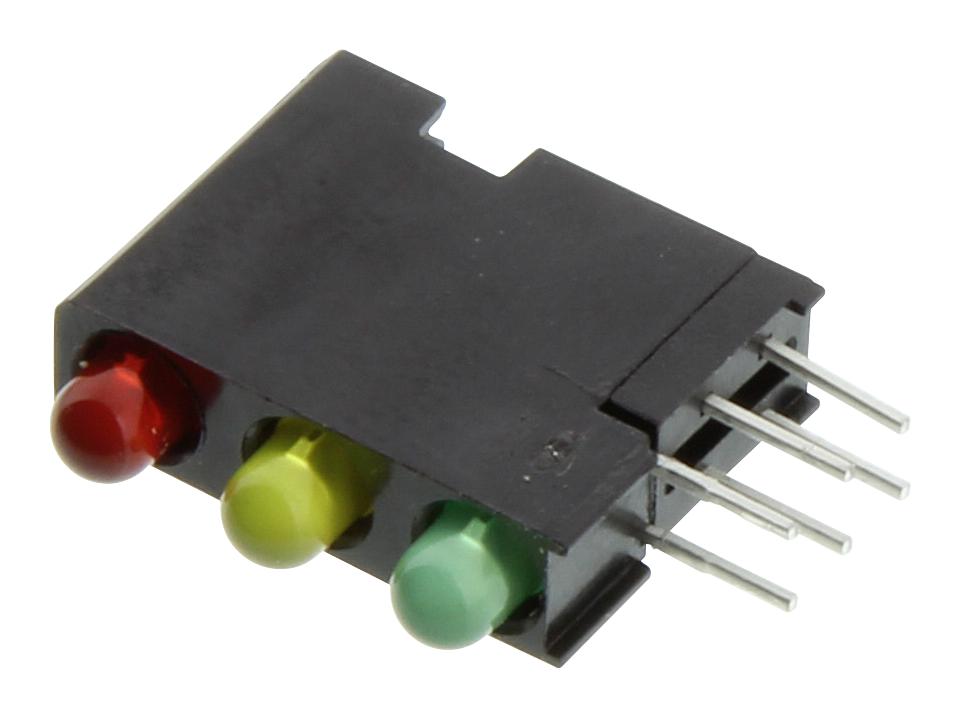

DIALIGHT - 564-0200-132F - Circuit Board Indicator, Red, Yellow, Green, 3 LEDs, Through Hole, T-1 (3mm), R 2mA, Y 2mA, G 2mA

  • LED Colour: Red, Yellow, Green
  • No. of LEDs: 3LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current / Colour: R 2mA, Y 2mA, G 2mA
  • Luminous Intensity / Colour: R 1.6mcd, Y 5mcd, G 1.6mcd
  • Forward Voltage / Colour: R 1.7V, Y 1.9V, G 1.8V
  • Viewing Angle: 60°
  • Height: 15.24mm
  • Width: 4.32mm
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • Display Size: 4.32mm x 15.24mm
  • Forward Current If: 2mA
  • Forward Current If Max: 2mA
  • Forward Voltage VF Max: 2.4V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Multicolour
  • Lens Shape: Round
  • Luminous Intensity: 5mcd
  • Luminous Intensity Typ: 5mcd
  • No. of Pins: 6Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
