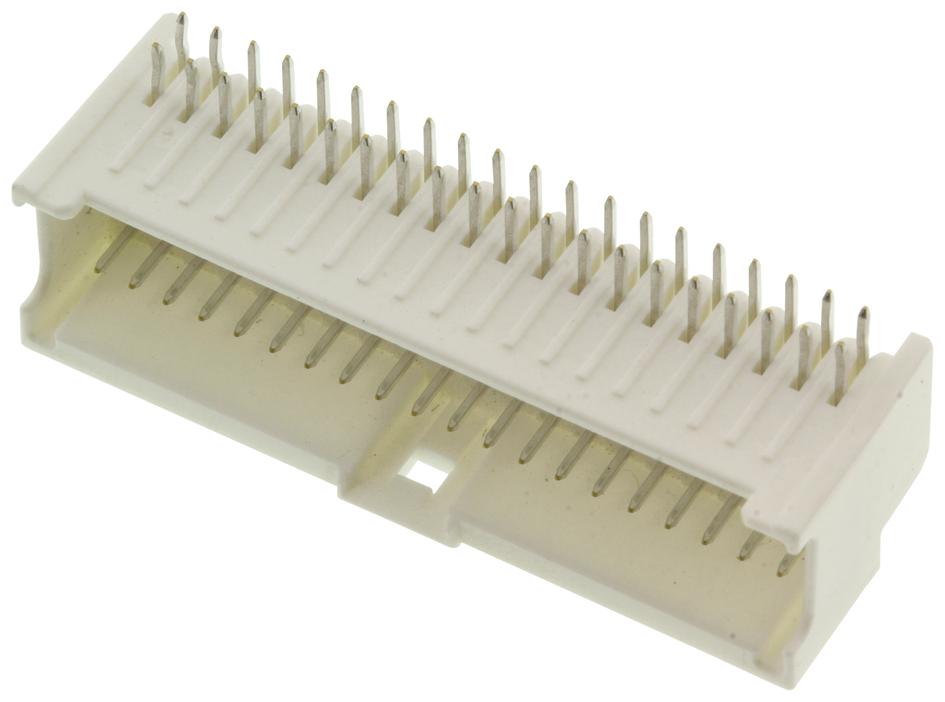

MOLEX - 55959-4030 - Pin Header, Right Angle, Wire-to-Board, 2 mm, 2 Rows, 40 Contacts, Through Hole Right Angle
- Pitch Spacing: 2mm
- No. of Contacts: 40Contacts
- Gender: Header
- Product Range: -
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Colour: White
- Contact Resistance: 20mohm
- Current Max: 3A
- Current Rating: 3A
- De-mating Force: 9.8N
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester
- Mating Force: 9.8N
- No. of Mating Cycles: 30
- Operating Temperature Max: +85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 250V
- Withstand Voltage: 1000V
- Working Voltage: 250V
