55.33.9.024.0000 Relay, 3PDT, 250VAC, 10A Finder

FINDERUGS :55.33.9.024.0000 Code de commande:1169242

Prix:
Prix ​​promotionnel€15,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documents et téléchargements

description

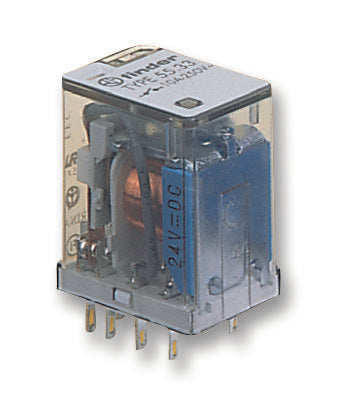

FINDER - 55.33.9.024.0000 - General Purpose Relay, 55 Series, Power, 3PDT, 24 VDC, 10 A

  • Contact Configuration: 3PDT
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: 55 Series
  • Relay Mounting: Socket
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 600ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: BEAB, CSA, IMQ, SEMKO, SEV, UL, VDE
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 40mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Power AC Max: 5VA
  • Coil Power AC Min: 1VA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 20A
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 26.4V
  • DC Coil Power: 1W
  • External Depth: 33.5mm
  • External Height: 27.5mm
  • External Length / Height: 27.5mm
  • External Width: 20.6mm
  • Nom Operating Power: 1W
  • Relay Type: Power - General Purpose
