553-0112-200F LED, Pcb, 3mm, Bi, Red-GRN DIALIGHT

DIALIGHTUGS :553-0112-200F Code de commande:1519390

Prix:
Prix ​​promotionnel€4,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2372 unité)

Documents et téléchargements

description

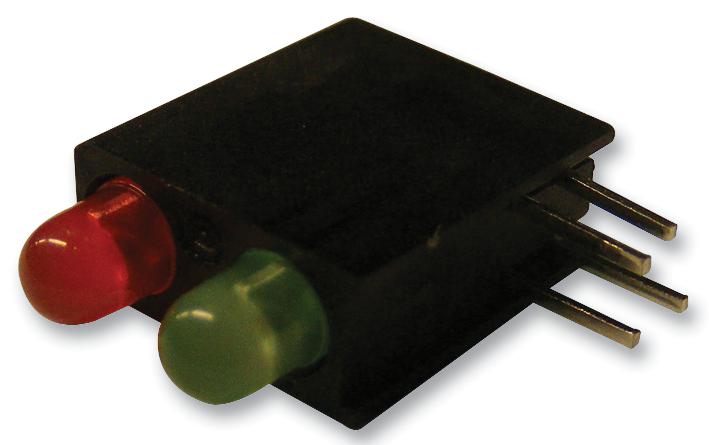

DIALIGHT - 553-0112-200F - Circuit Board Indicator, Green, Red, 2 LEDs, Through Hole, T-1 (3mm), R 10mA, G 10mA

  • LED Colour: Green, Red
  • No. of LEDs: 2LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current / Colour: R 10mA, G 10mA
  • Luminous Intensity / Colour: R 10mcd, G 16mcd
  • Forward Voltage / Colour: R 2V, G 2.1V
  • Viewing Angle: 45°
  • Height: 9.65mm
  • Width: 4.32mm
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • Display Size: 4.32mm x 9.65mm
  • Forward Current If: 10mA
  • Forward Current If Max: 10mA
  • Forward Voltage: 2.1V
  • Forward Voltage VF Max: 2.8V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Multicolour
  • Lens Shape: Round
  • Luminous Intensity: 12.6mcd
  • Luminous Intensity Typ: 12.6mcd
  • No. of Pins: 4Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
  • Wavelength Green LED: 565nm
  • Wavelength Red LED: 635nm
