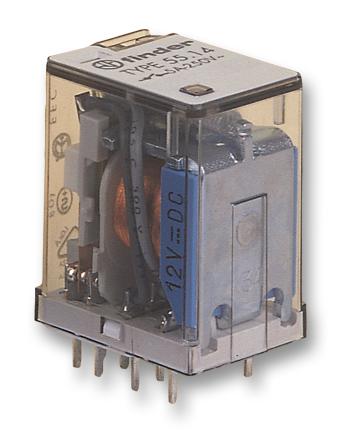

FINDER - 55.14.9.012.0000 - General Purpose Relay, 55 Series, Power, 4PDT, 12 VDC, 7 A
- Contact Configuration: 4PDT
- Coil Voltage: 12VDC
- Contact Current: 7A
- Product Range: 55 Series
- Relay Mounting: Through Hole
- Coil Type: -
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 140ohm
- SVHC: No SVHC (15-Jan-2019)
- AC Coil Power: 1.5VA
- Approval Bodies: CDE, CSA, IMQ, SEMKO, SEV, UL
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 86mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 7A
- Contact Current DC Max: 5A
- Contact Current Max: 15A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 13.2V
- DC Coil Power: 1W
- External Depth: 33.5mm
- External Height: 27.5mm
- External Length / Height: 27.5mm
- External Width: 20.6mm
- Lead Spacing: 0.5mm
- Nom Operating Power: 1W
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Relay Type: Power
- Row Pitch: 1.2mm
