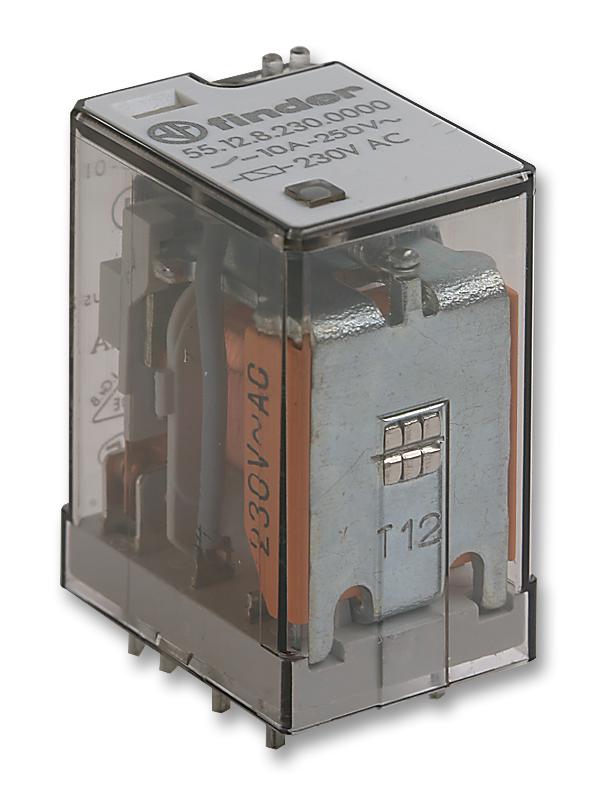

55.12.9.024.0000 Relay, DPDT, 250VAC, 10A Finder

FINDERUGS :55.12.9.024.0000 Code de commande:1169251

Prix:
Prix ​​promotionnel€15,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (101 unité)

Documents et téléchargements

description

FINDER - 55.12.9.024.0000 - General Purpose Relay, 55 Series, Power, DPDT, 24 VDC, 10 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: 55 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 600ohm
  • SVHC: No SVHC (15-Jan-2019)
  • AC Coil Power: 1.5VA
  • Approval Bodies: CDE, CSA, SEMKO, SEV
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 40mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 20A
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 26.4V
  • DC Coil Power: 1W
  • External Depth: 33.5mm
  • External Height: 27.5mm
  • External Length / Height: 27.5mm
  • External Width: 20.6mm
  • Lead Spacing: 0.5mm
  • Nom Operating Power: 1W
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
  • Row Pitch: 1.2mm
