5500.2002 Filter, 2A, Pcb Mount Schurter

SCHURTERUGS :5500.2002 Code de commande:1162775

Prix:
Prix ​​promotionnel€11,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1235 unité)

Documenten en downloads

description

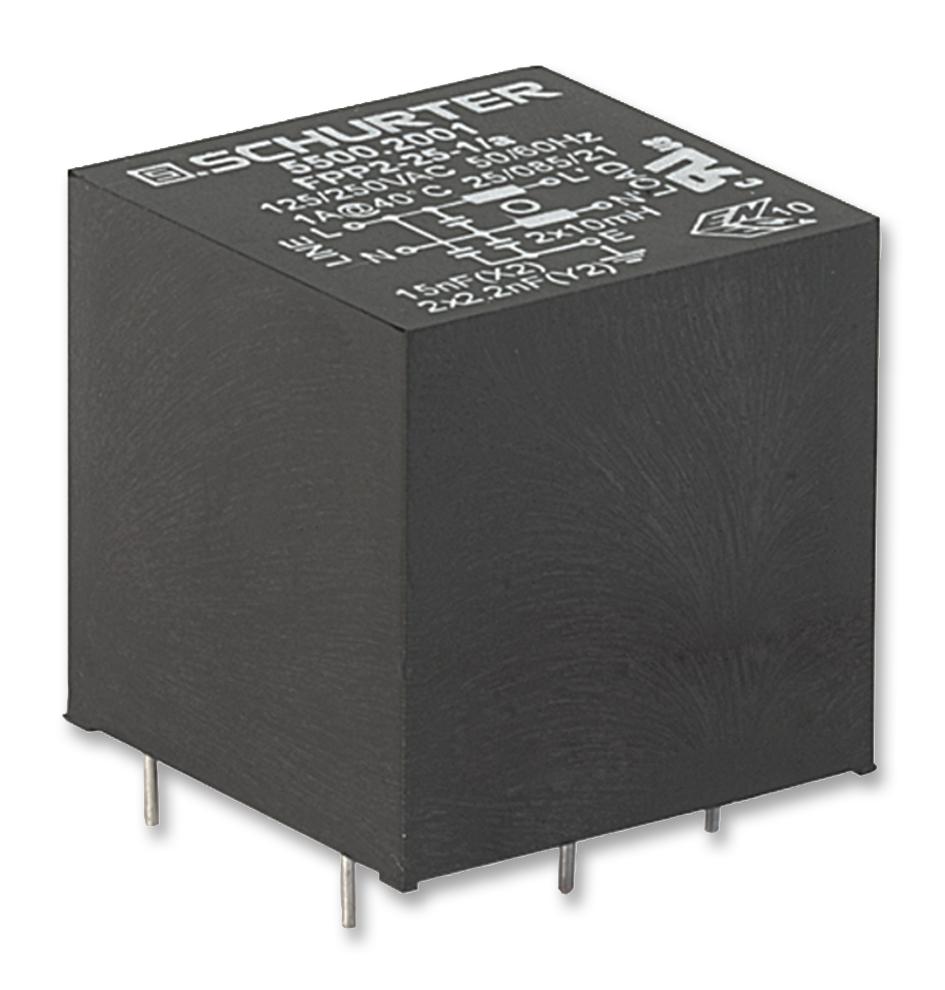

SCHURTER - 5500.2002 - Power Line Filter, General Purpose, 250 VAC, 2 A, Single Phase, 1 Stage, Through Hole

  • Capacitance: 15000pF
  • Voltage Rating: 250V
  • Filter Type: IEC, Mains
  • Current Rating: 2A
  • Filter Terminals: Through Hole
  • Inductance Min: 4mH
  • Leakage Current Max: 500µA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, EN, SEV, UL, VDE
  • Capacitance X: 0.015µF
  • Capacitance Y: 2200pF
  • External Depth: 31mm
  • External Length / Height: 25mm
  • External Width: 36mm
  • Input Voltage Max: 250V
  • Input Voltage Min: 115V
  • Lead Diameter: 0.6mm
  • Lead Length: 15mm
  • No. of Inductors: 2
  • No. of Phases: Single Phase
  • No. of X Type Capacitors: 1
  • No. of Y Type Capacitors: 2
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Standard: IEC950
  • Voltage Rating VAC: 250V
