53112909 Cable Gland, Spiral, Black, M16 Lapp Kabel

LAPP KABELUGS :53112909 Code de commande:1504197

Prix:
Prix ​​promotionnel€9,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (71 unité)

Documents et téléchargements

description

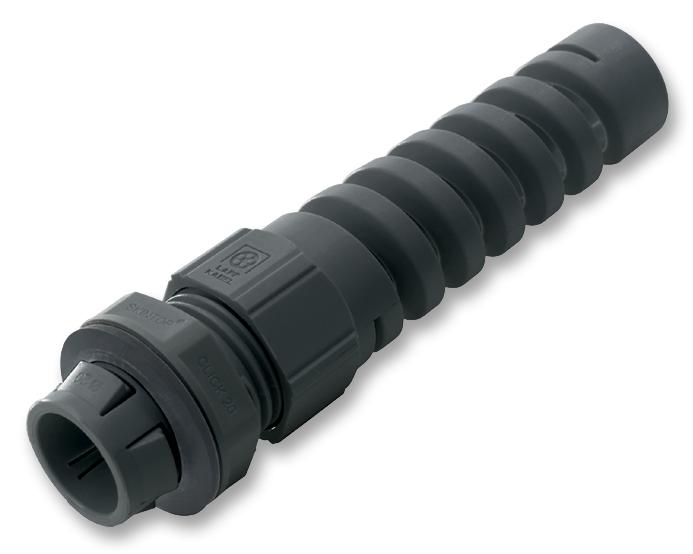

LAPP KABEL - 53112909 - Cable Gland, Skintop® Click BS, IP68, M16, 5 mm, 9 mm, Nylon (Polyamide), Black

  • Thread Size - Imperial: -
  • Thread Size - Metric: M16
  • Cable Diameter Min: 5mm
  • Cable Diameter Max: 9mm
  • Cable Gland Material: Nylon (Polyamide)
  • Gland Colour: Black
  • IP / NEMA Rating: IP68
  • Product Range: Skintop Click BS Series
  • SVHC: No SVHC (15-Jan-2019)
  • Accessory Type: Gland
  • Cable Diameter: 9mm
  • Cable Diameter Max - Imperial: 0.354"
  • Cable Diameter Max - Metric: 9mm
  • Cable Diameter Min - Imperial: 0.197"
  • Cable Diameter Min - Metric: 5mm
  • Colour: Grey
  • External Length / Height: 94mm
  • For Use With: Flexible Cables on Hand-Held Equipments
  • Material: Polyamide + Elastomer
  • Mounting Hole Dia: 16mm
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -20°C
  • Pack Quantity: 1
  • Panel Thickness Max: 4mm
  • Panel Thickness Min: 1mm
  • Thread Depth: 8mm
  • Thread Size: M16
