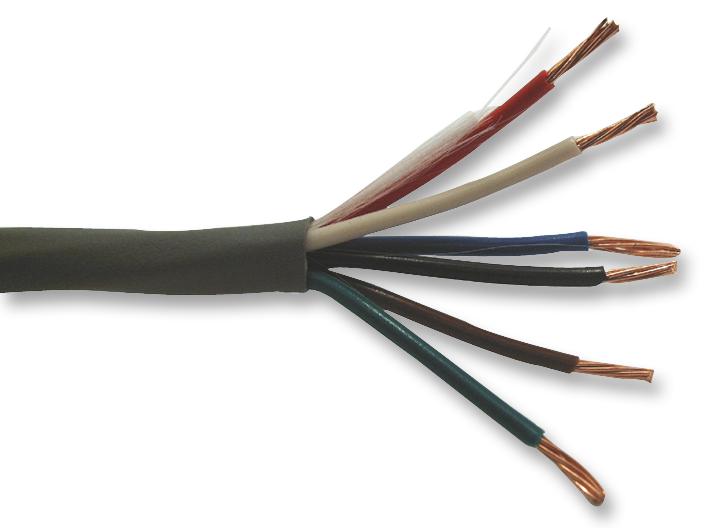

BELDEN - 5304UE 008500 - Multicore Cable, Security Alarm, Unscreened, 6 Core, 18 AWG, 0.891 mm², 498.69 ft, 152.4 m
- Cable Shielding: Unscreened
- No. of Cores: 6Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.891mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 26mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 5.7mm
- Voltage Rating: 300V
- Product Range: 5304U Series
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Unshielded
- Conductor Make-up: 7 / 26mm
- Core - Core Capacitance: 30pF/ft
- Current Rating: 3.5A
- Insulation Resistance: 22.7ohm/km
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 5.7mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 300V
- Wire Size: 18AWG
