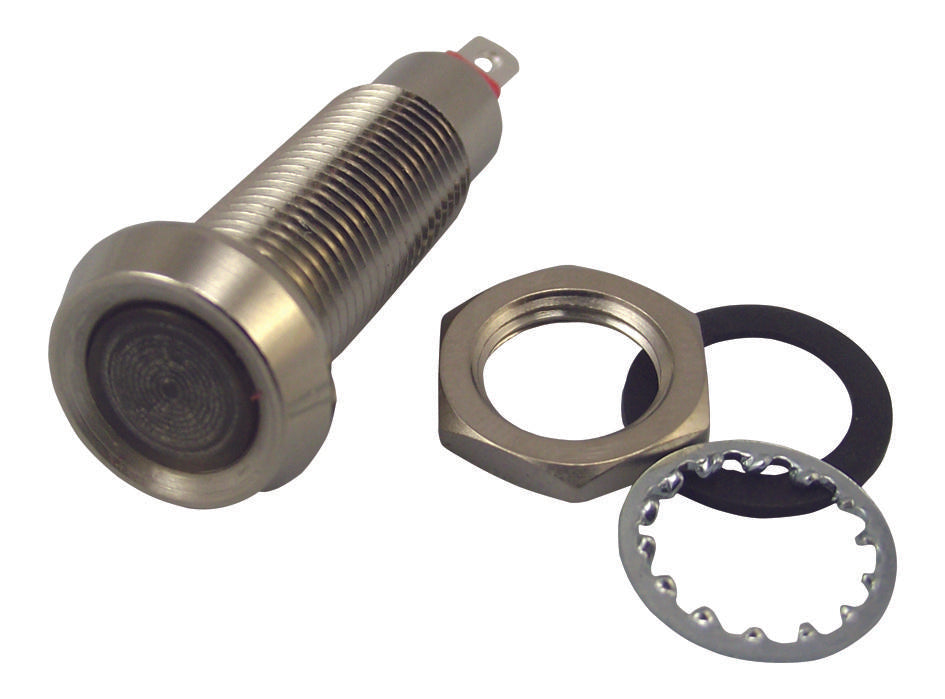

MARL - 508-532-22 - LED Panel Mount Indicator, Weatherproof, Green, 24 VDC, 8.1 mm, 20 mA, 23 cd, IP67
- LED Colour: Green
- Operating Voltage: 24VDC
- Mounting Hole Dia: 8.1mm
- Forward Current If: 20mA
- Luminous Intensity: 23cd
- IP / NEMA Rating: IP67
- Product Range: 508 Series
- SVHC: No SVHC (15-Jan-2019)
- Bezel Diameter: 11.5mm
- Body Plating: Nickel
- Bulb Size: 7mm
- Current If Luminous Intensity: 20mA
- External Diameter: 11.5mm
- External Length / Height: 33mm
- Fixing Hole Diameter: 8.1mm
- Forward Current If Max: 20mA
- Forward Voltage: 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 7mm
- Length Behind Bezel: 29.3mm
- Lens Shape: Round with Flat Top
- Luminous Intensity Typ: 6000mcd
- Material: Brass
- Operating Current DC: 20mA
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +60°C
- Operating life Time: 90000h
- Peak Wavelength: 525nm
- Voltage Rating V DC: 24V
- Voltage Vf Typ: 24VDC
- Wavelength Typ: 525nm
