502439-1200 Connector, Plug, 12Pos, 1ROW, 2mm Molex

MOLEXUGS :502439-1200 Code de commande:1617062

Prix:
Prix ​​promotionnel€0,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4530 unité)

Documents et téléchargements

description

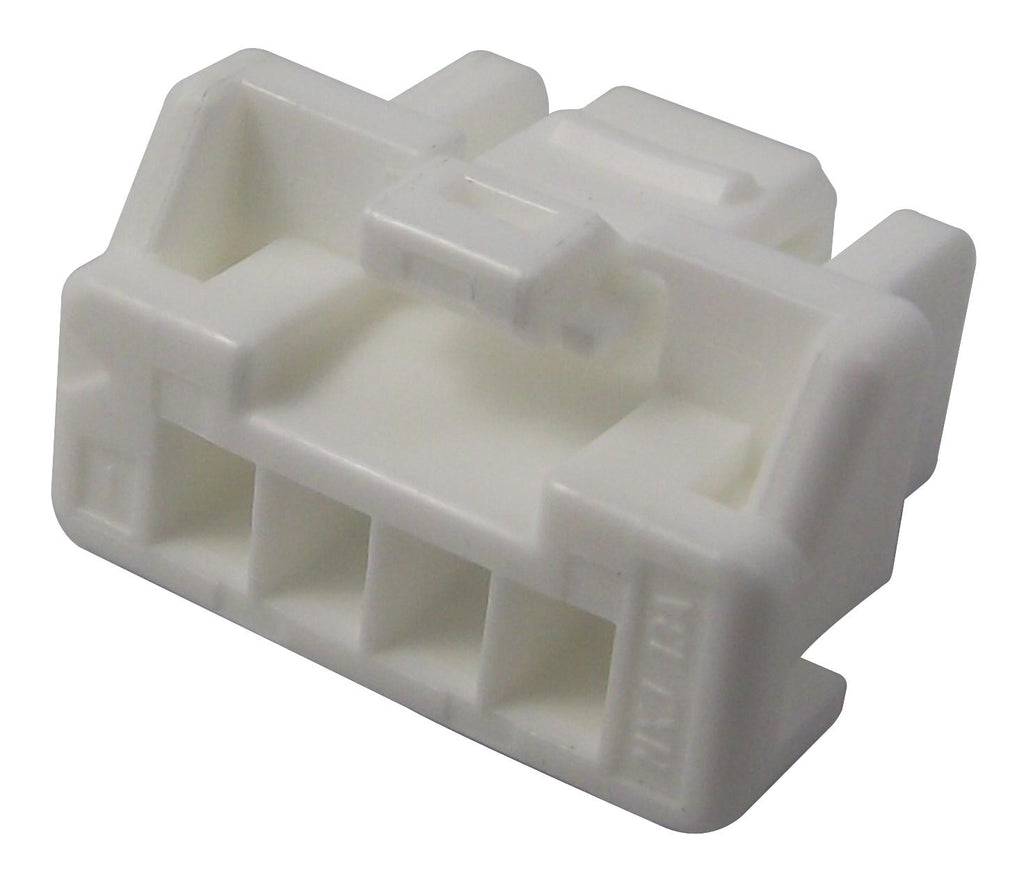

MOLEX - 502439-1200 - Connector Housing, Positive Lock, CLIK-Mate 502439, Plug, 12 Ways, 2 mm, 502438 Crimp Terminal

  • Pitch Spacing: 2mm
  • No. of Contacts: 12Contacts
  • Gender: Plug
  • Product Range: CLIK-Mate 502439 Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: -
  • Contact Material: -
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: White
  • Contact Resistance: 20mohm
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • For Use With: 502438 Series Male Crimp Terminals
  • Insulation Resistance: 1000Mohm
  • Material: Polybutylene Terephthalate
  • No. of Positions: 12Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 800V
