502386-0870 Connector, Rcpt, 8Pos, 1ROW, 1.25mm Molex

MOLEXUGS :502386-0870 Code de commande:1620799

Prix:
Prix ​​promotionnel€1,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (494 unité)

Documents et téléchargements

description

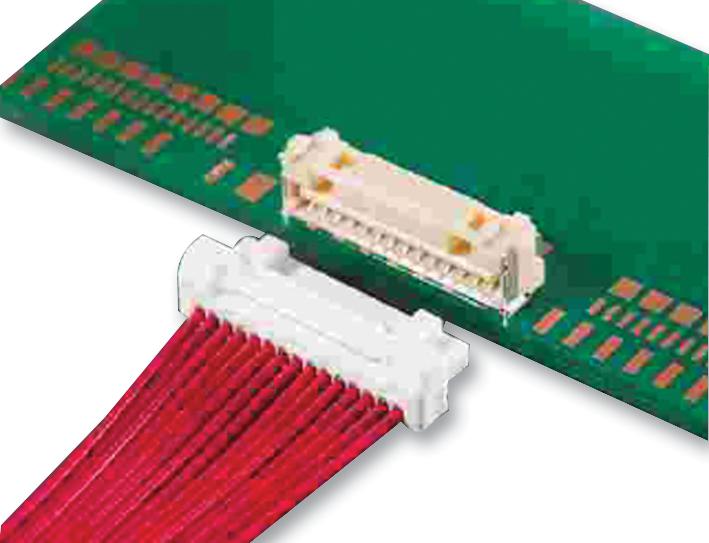

MOLEX - 502386-0870 - PCB Receptacle, Signal, 1.25 mm, 1 Rows, 8 Contacts, Surface Mount Right Angle, CLIK-Mate 502386

  • Pitch Spacing: 1.25mm
  • No. of Contacts: 8Contacts
  • Gender: Receptacle
  • Product Range: CLIK-Mate 502386 Series
  • Contact Termination Type: Surface Mount
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: White
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100Mohm
  • Material: Polybutylene Terephthalate
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
