50.12.9.024.1000 RELAY, SAFETY, DPDT, 250VAC, 8A FINDER

FINDERUGS :50.12.9.024.1000 Code de commande:1329681

Prix:
Prix ​​promotionnel€18,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2304 unité)

Documents et téléchargements

description

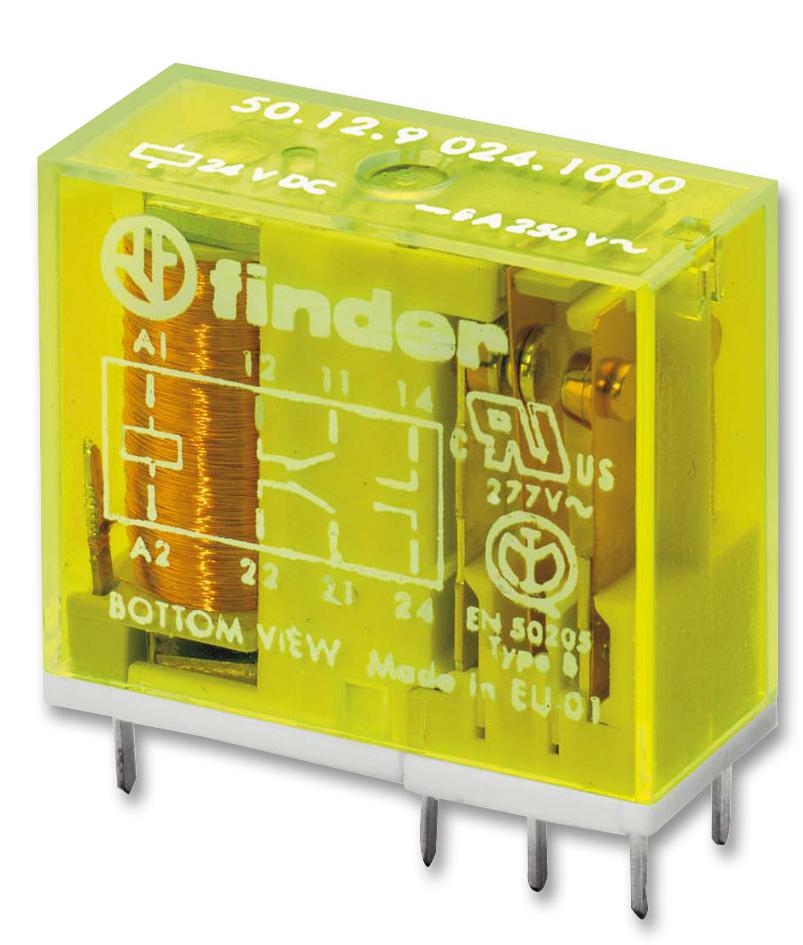

FINDER - 50.12.9.024.1000 - Safety Relay, 24 VDC, DPDT, 50 Series, Through Hole, 8 A, Solder

  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT
  • Product Range: 50 Series
  • Relay Mounting: Through Hole
  • Contact Current: 8A
  • Relay Terminals: Solder
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • Contact Material: Silver Nickel
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 29.3mA
  • Coil Resistance: 820ohm
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 15A
  • Current Rating: 8A
  • External Depth: 29mm
  • External Height: 25mm
  • External Width: 12.4mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 10ms
  • Release Time: 4ms
