5-1393239-5 Relay, SPDT, 250VAC, 12A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :5-1393239-5 Code de commande:2060831

Prix:
Prix ​​promotionnel€6,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1030 unité)

Documents et téléchargements

description

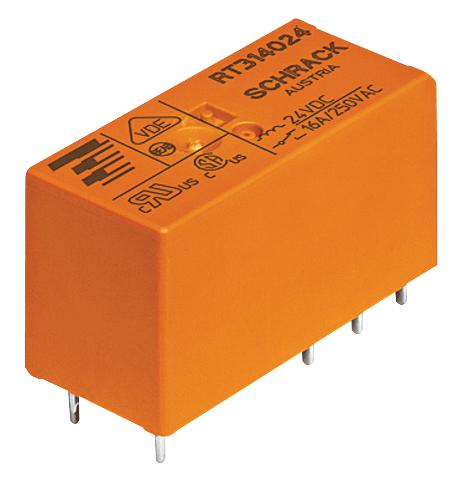

SCHRACK - TE CONNECTIVITY - 5-1393239-5 - General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT, 24 VDC, 12 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 12A
  • Product Range: RT1 Series
  • Relay Mounting: Through Hole
  • Coil Type: DC
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.44kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 12A
  • Contact Voltage AC Nom: 250V
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Relay Type: Power
