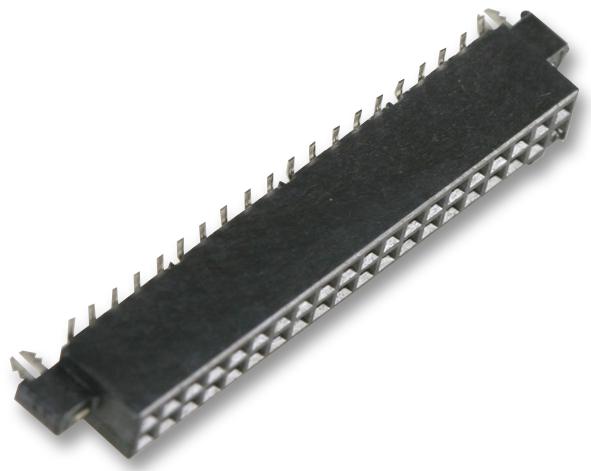

AMP - TE CONNECTIVITY - 5-104652-5 - PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 50 Contacts, Surface Mount, AMPMODU 50/50 Grid
- Pitch Spacing: 1.27mm
- No. of Contacts: 50Contacts
- Gender: Receptacle
- Product Range: AMPMODU 50/50 Grid Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, UL
- Approval Category: CSA LR7189, UL E28476
- Colour: Black
- Current Max: 4A
- Current per Contact Max: 0.5A
- External Length / Height: 4.75mm
- Flammability Rating: UL94V-0
- Housing: Glass-filled Thermoplastic
- Insulation Resistance: 5000Mohm
- Length: 36.22mm
- Operating Temperature Max: +105°C
- Operating Temperature Min: -65°C
- Row Pitch: 1.27mm
- Voltage Rating VAC: 30V
- Withstand Voltage: 300V
