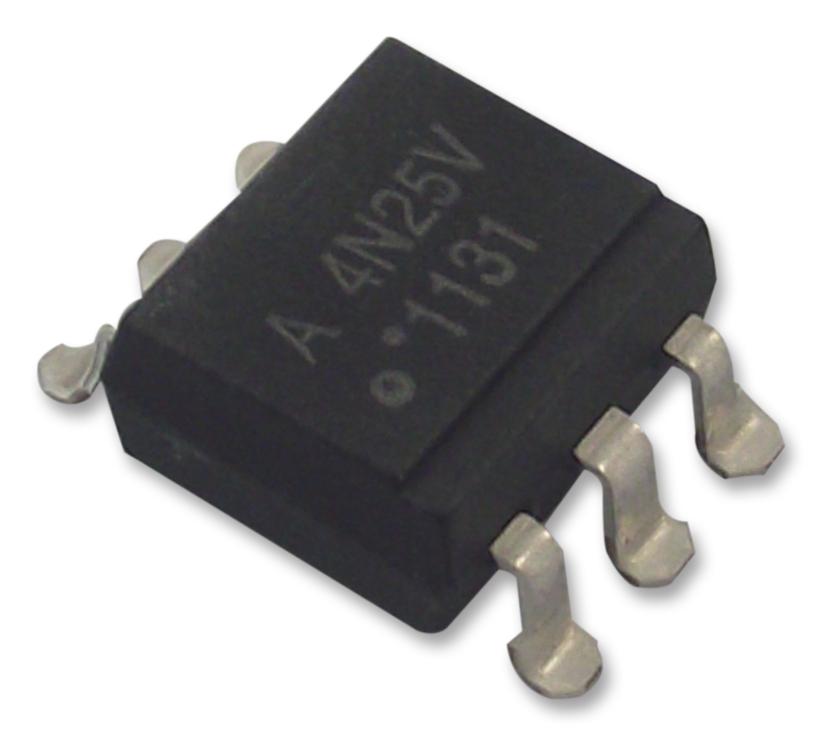

4N25-360E Optocoupler, Transistor O/P, VDE BROADCOM

BROADCOMUGS :4N25-360E Code de commande:1244502

Prix:
Prix ​​promotionnel€0,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

BROADCOM - 4N25-300E - Optocoupler, Transistor Output, 1 Channel, Surface Mount DIP, 6 Pins, 80 mA, 2.5 kV, 20 %

  • No. of Channels: 1 Channel
  • Optocoupler Case Style: Surface Mount DIP
  • No. of Pins: 6Pins
  • Forward Current If Max: 80mA
  • Isolation Voltage: 2.5kV
  • CTR Min: 20%
  • Collector Emitter Voltage V(br)ceo: 30V
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: CSA, DIN, EN, IEC
  • Current If CTR: 10mA
  • Current Transfer Ratio Min: 20%
  • Fall Time tf: 3000ns
  • Forward Voltage VF Max: 1.5V
  • Input Current: 10mA
  • No. of Channels: 1Channels
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Rise Time: 3000ns
  • Voltage Vf Typ: 1.2V
