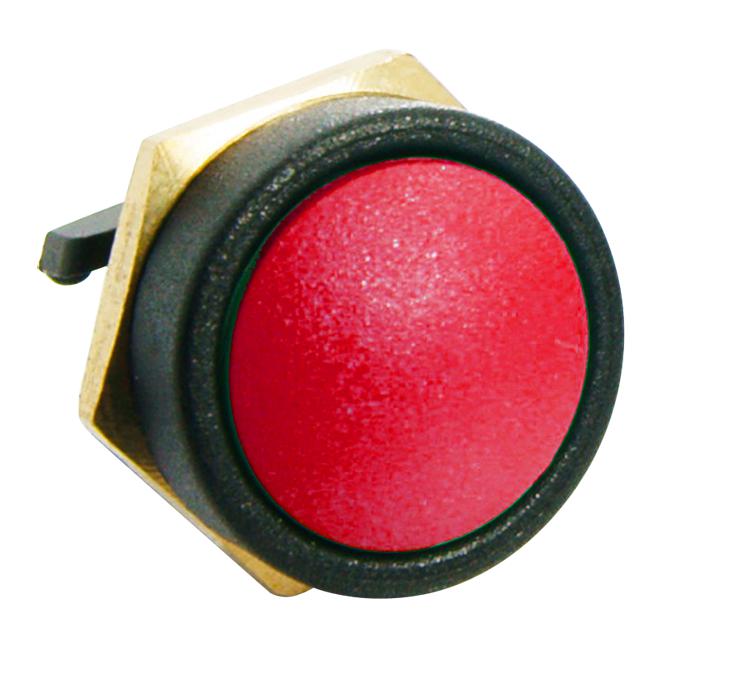

ITW SWITCHES - 49-59122 - Industrial Pushbutton Switch, 49-59, 16.1 mm, SPDT-DB, Momentary, Round Domed, Red
- Switch Operation: Momentary
- Contact Configuration: SPST-NO-DB
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 50V
- Contact Current Max: 10A
- Switch Terminals: Solder Lug
- Product Range: 49-59 Series
- SVHC: No SVHC (17-Dec-2015)
- Actuator / Cap Colour: Red
- Actuator Type: Round
- Bezel Diameter: 19.8mm
- Colour: Red
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current AC Max: 400mA
- Contact Current DC Max: 100mA
- Contact Current Rating: 10A
- Contact Resistance: 25mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 50V
- Contact Voltage VAC: 32V
- Contact Voltage VDC: 50V
- Dielectric Strength VDC: 1kV
- Double Flat Panel Cut-out Diameter: 16mm
- External Depth: 16mm
- External Length / Height: 23.1mm
- Flammability Rating: UL94V-0
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 10000000
- Operating Temperature Max: 135°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 16.1mm
- Switch Mounting: Panel
