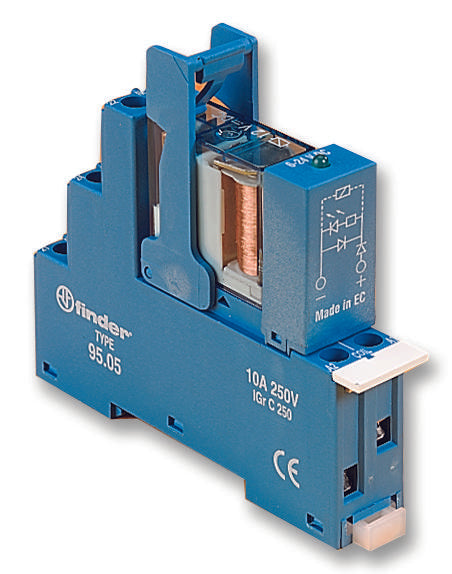

FINDER - 48.52.7.024.0050SPA - General Purpose Relay, 48 Series, Interface, DPDT, 24 VDC, 8 A
- Contact Configuration: DPDT
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: 48 Series
- Relay Mounting: DIN Rail
- Coil Type: DC Sensitive
- Contact Voltage VAC: 250VAC
- Relay Terminals: Screw
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: BEAB, CSA, DEMKO, IMQ, SEMKO, SETI, SEV, UL, VDE
- Approvals & Standards: CSA, UL, VDE
- Average Power Consumption: 500mW
- Coil Operating Lower Percent Limit: 110%
- Coil Operating Upper Percent Limit: 80%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 15A
- Contact Resistance: 1200ohm
- Contact Voltage AC Max: 24V
- Contact Voltage AC Nom: 250V
- Current Rating: 5A
- DC Coil Power: 500mW
- External Depth: 76mm
- External Height: 78.8mm
- External Length / Height: 78.8mm
- External Width: 15.8mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Relay Type: Interface
- Switch Current Max: 8A
- Switching Current Max: 8A
