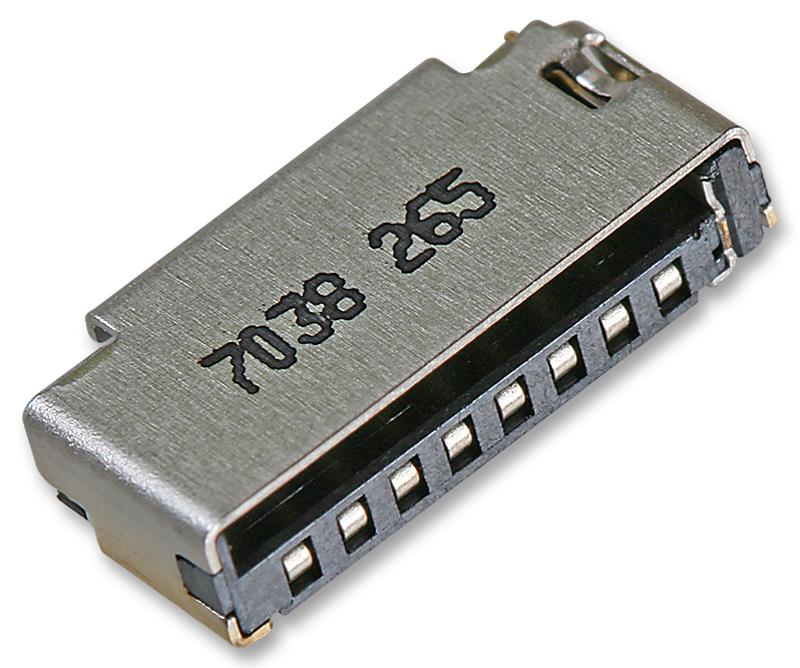

MOLEX - 47309-2651 - Memory Card Connector, MicroSD, Push-Pull, 8 Contacts, Phosphor Bronze, Gold Plated Contacts
- Product Range: 47309 Series
- Connector Type: Micro SD
- No. of Contacts: 8Contacts
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 25mohm
- Contact Termination: Surface Mount Right Angle
- Contact Termination Type: Surface Mount
- Insulation Resistance: 100Mohm
- Lead Spacing: 1.1mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Pitch Spacing: 1.1mm
- Withstand Voltage: 500V
