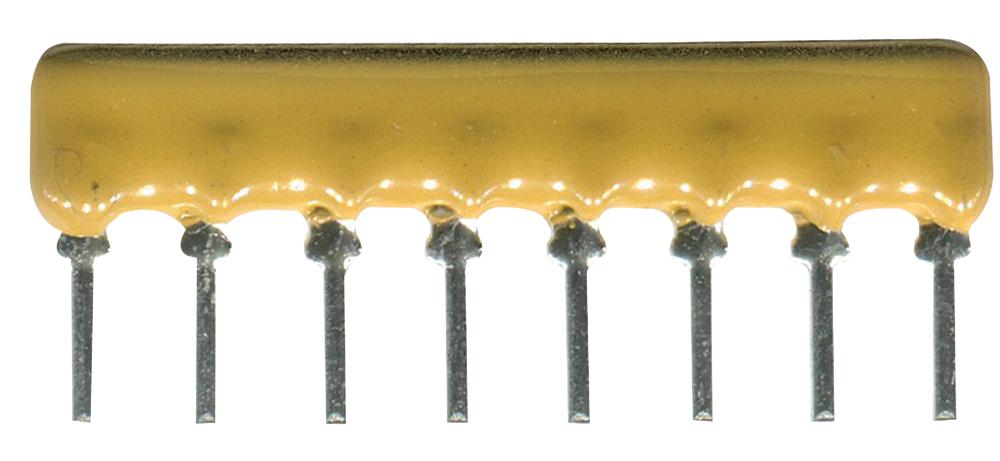

BOURNS - 4608X-102-330LF - Fixed Network Resistor, 33 ohm, Isolated, 4 Resistors, SIP, PC Pin, ± 1ohm
- Resistance: 33ohm
- Product Range: 4600X Series
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: SIP
- No. of Pins: 8Pins
- Voltage Rating: 100V
- Power Rating per Element: 300mW
- Resistance Tolerance: ± 1ohm
- Temperature Coefficient: ± 250ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- External Depth: 5.08mm
- External Length / Height: 20.27mm
- External Width: 2.49mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 10Mohm
- Lead Length: 3.43mm
- Lead Spacing: 2.54mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 1W
- Resistance R1: 33ohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
- Temperature Coeff Tracking +: 50ppm/°C
- Temperature Coeff Tracking -: 50ppm/°C
- Temperature Coeff. +: 250ppm/°C
- Temperature Coeff. -: 250ppm/°C
- Tolerance +: 3.03%
- Tolerance -: 3.03%
- Voltage Rating V DC: 100V
