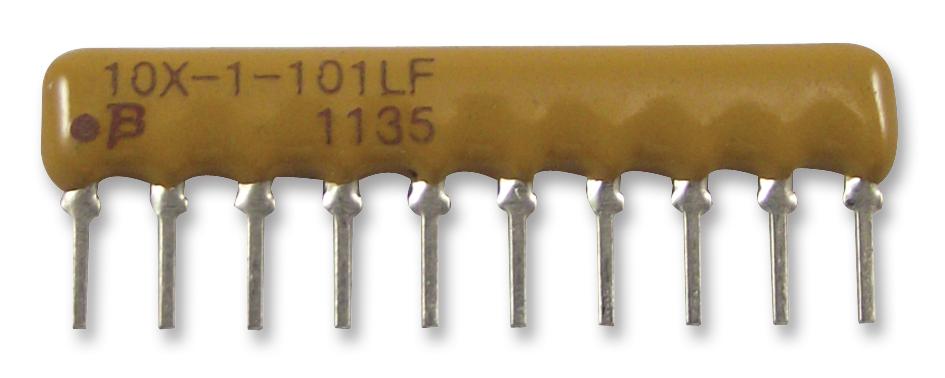

4608X-102-151LF Resistor Network, 150R Bourns

BOURNSUGS :4608X-102-151LF Code de commande:9356550

Prix:
Prix ​​promotionnel€0,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (191 unité)

Documenten en downloads

description

BOURNS - 4608X-102-151LF - Fixed Network Resistor, 150 ohm, Isolated, 4 Resistors, SIP, PC Pin, ± 2%

  • Resistance: 150ohm
  • Product Range: 4600X Series
  • No. of Elements: 4Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: SIP
  • No. of Pins: 8Pins
  • Voltage Rating: 100V
  • Power Rating per Element: 300mW
  • Resistance Tolerance: ± 2%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • External Depth: 5.08mm
  • External Length / Height: 20.27mm
  • External Width: 2.49mm
  • Full Power Rating Temperature: 70°C
  • Insulation Resistance: 10Mohm
  • Lead Length: 3.43mm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 1W
  • Resistance R1: 150ohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Through Hole
  • Resistor Terminals: Radial Leaded
  • Temperature Coeff Tracking +: 50ppm/°C
  • Temperature Coeff Tracking -: 50ppm/°C
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 2%
  • Tolerance -: 2%
  • Voltage Rating V DC: 100V
