430471025826 Switch, 260GF, Washable, Blk, SMD, 2.5mm Wurth Elektronik

WURTH ELEKTRONIKUGS :430471025826 Code de commande:1867985

Prix:
Prix ​​promotionnel€0,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (950 unité)

Documents et téléchargements

description

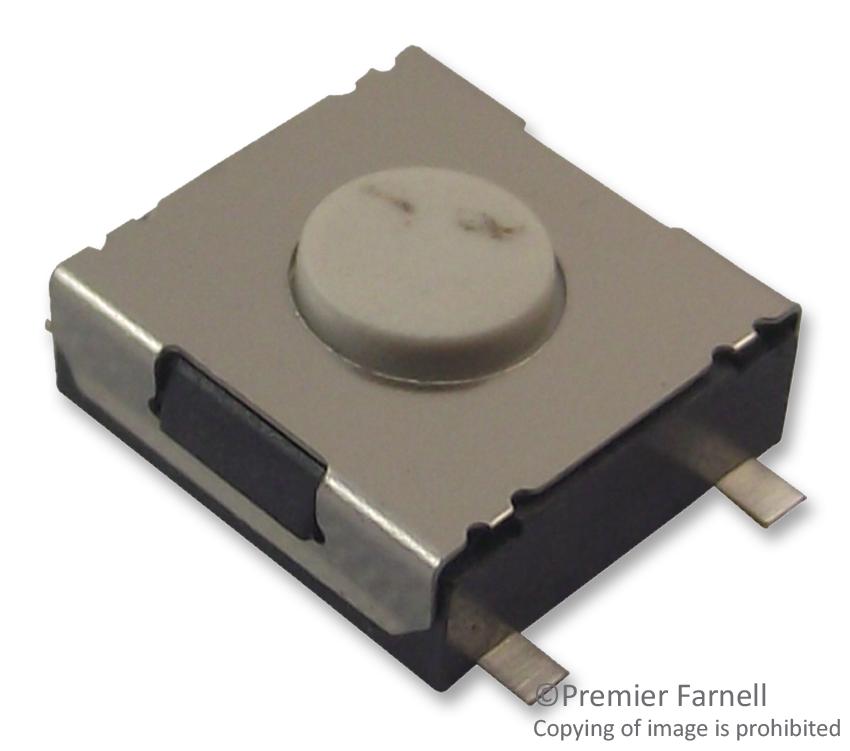

WURTH ELEKTRONIK - 430471025826 - Tactile Switch, WS-TASV, Top Actuated, Surface Mount, Round Button, 260 gf, 50mA at 12VDC

  • Product Range: WS-TASV Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 260gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6.2mm x 6.2mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Actuator / Cap Colour: White
  • Contact Configuration: DPST
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 12V
  • External Depth: 6.2mm
  • External Length / Height: 2.5mm
  • External Width: 6.2mm
  • Height: 2.5mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 500000
  • Operating Force: 2.55N
  • Switch Terminals: Solder
