description

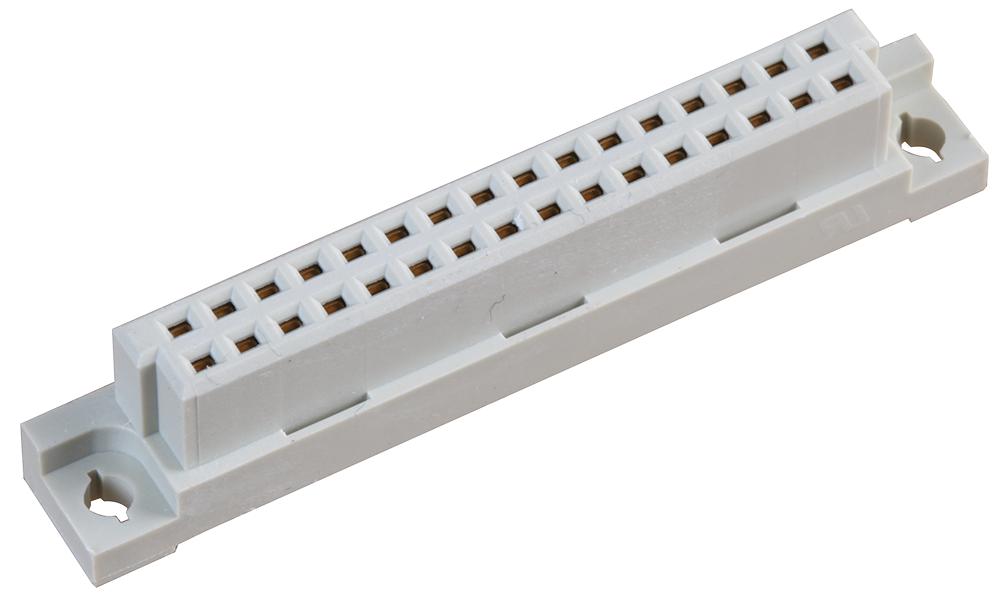

MULTICOMP PRO - 41612-32AB-FS - DIN 41612 Connector, 41612, 32 Contacts, Receptacle, 2.54 mm, 2 Row, a + b
- Product Range: 41612 Series
- No. of Contacts: 32Contacts
- Gender: Receptacle
- Pitch Spacing: 2.54mm
- No. of Rows: 2 Row
- Rows Loaded: a + b
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- No. of Mating Cycles: -
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 30mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2.54mm
- No. of Rows: 2Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
- Row Pitch: 2.54mm
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Withstand Voltage: 1000V
