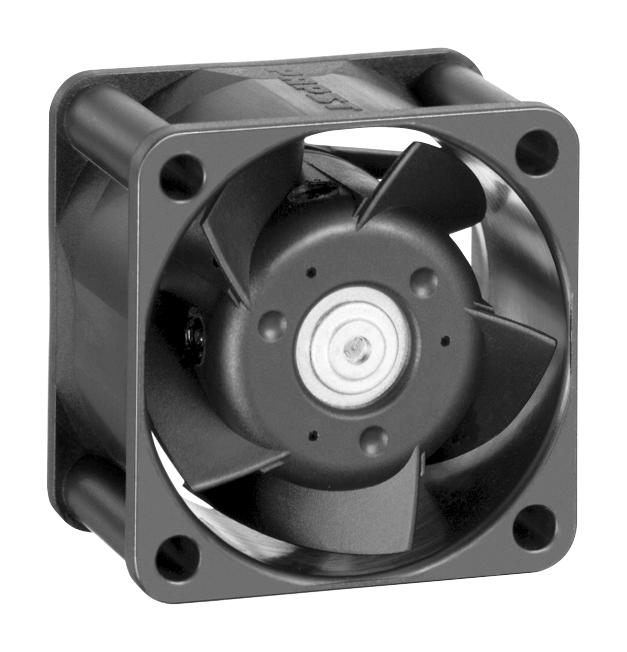

EBM-PAPST - 414J/2H - DC Axial Fan, 24 V, Square, 40 mm, 25 mm, Ball Bearing, 12.9 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 40mm
- External Depth: 25mm
- Noise Rating: 43dBA
- Flow Rate - Imperial: 12.9cu.ft/min
- Flow Rate - Metric: 22m³/h
- Bearing Type: Ball
- Power Connection Type: 3 Lead Wires, Sensor Output
- Current Rating: -
- Product Range: 400J Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- Current Consumption: 115mA
- External Height: 40mm
- External Width: 40mm
- Fixing Centres: 32mm
- Fixing Hole Diameter: 3.5mm
- Frame Dimensions: 40mm x 40mm x 25mm
- Input Voltage Max: 27V
- Input Voltage Min: 18V
- Lead Length: 310mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Operating life Time: 55000h
- Power Consumption: 2.7W
- Speed Range Max: 11700rpm
- Supply Voltage DC Max: 27V
- Supply Voltage DC Min: 18V
- Weight: 50g
