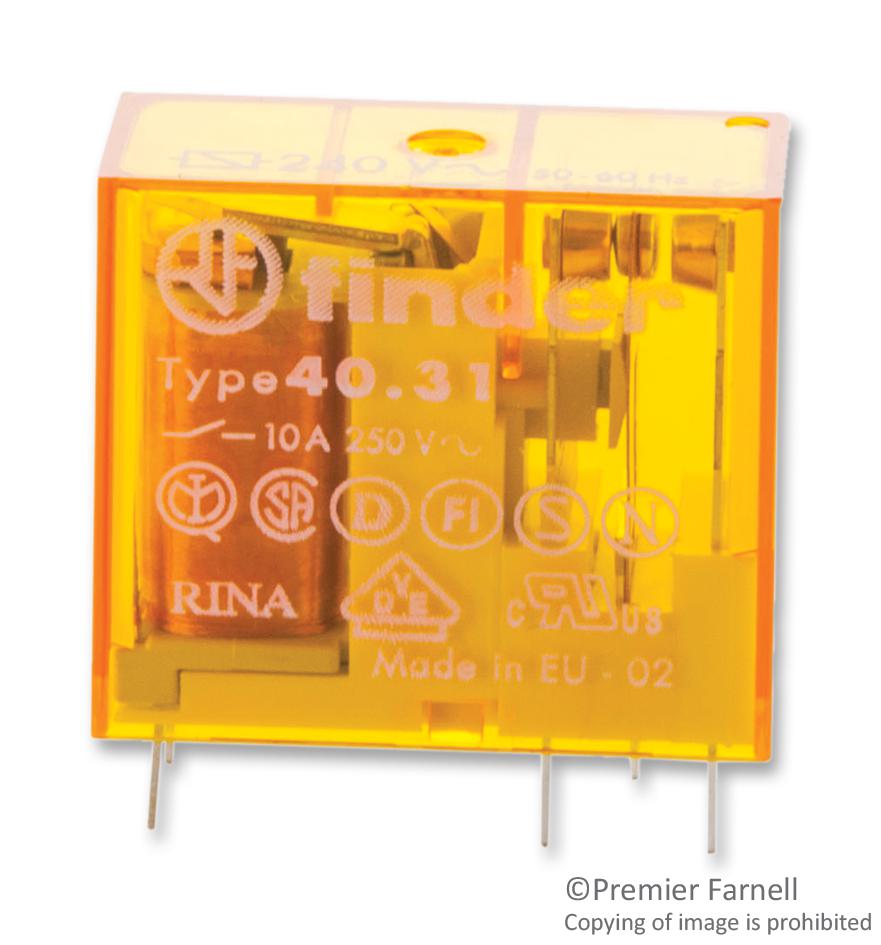

40.31.8.240.0000 Relay, SPDT, 240Vac, 10A Finder

FINDERUGS :40.31.8.240.0000 Code de commande:1169156

Prix:
Prix ​​promotionnel€16,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (228 unité)

Documents et téléchargements

description

FINDER - 40.31.8.240.0000 - General Purpose Relay, 40 Series, Power, SPDT, 240 VAC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 240VAC
  • Contact Current: 10A
  • Product Range: 40 Series
  • Relay Mounting: Through Hole
  • Coil Type: AC
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Nickel
  • Coil Resistance: 31.5kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 4.1mA
  • Coil Voltage VAC Nom: 240V
  • Contact Current Max: 20A
  • Contact Voltage AC Nom: 250V
  • Current Rating: 10A
  • External Depth: 12.4mm
  • External Height: 25mm
  • External Width: 29mm
  • Nom Operating Power: 1.2VA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power - General Purpose
