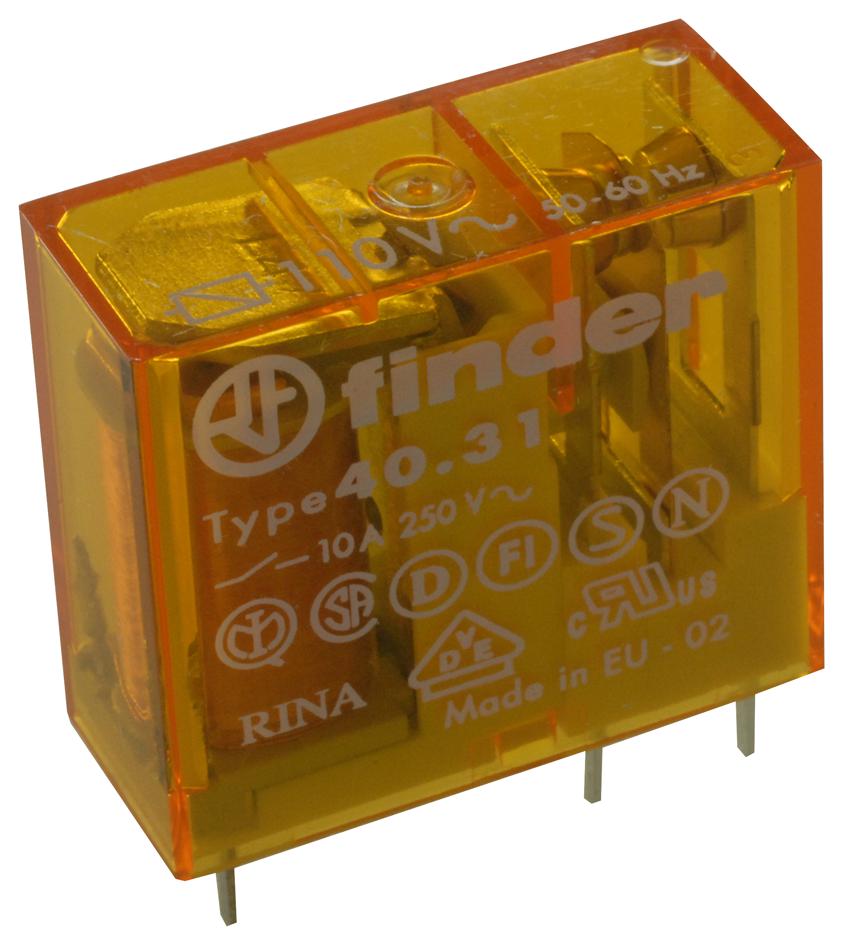

FINDER - 40.31.8.110.0000 - General Purpose Relay, 40 Series, Power, SPDT, 110 VAC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 110VAC
- Contact Current: 10A
- Product Range: 40 Series
- Relay Mounting: Through Hole
- Coil Type: AC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: 6.9kohm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: BEAB, CSA, DEMKO, IMQ, SEMKO, NF-USE, SETI, SEV, UL, VDE
- Approval Category: BEAB, CSA, DEMKO, IMQ, NF-USE, SEMKO, SETI, SETI, SEV, UL, VDE
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 9.4mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 150%
- Coil Voltage VAC Nom: 110V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 20A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- DC Coil Power: 500mW
- External Depth: 25mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 12.4mm
- Nom Operating Power: 1.2VA
- Operating Temperature Max: 70°C
- Release Time: 7ms
