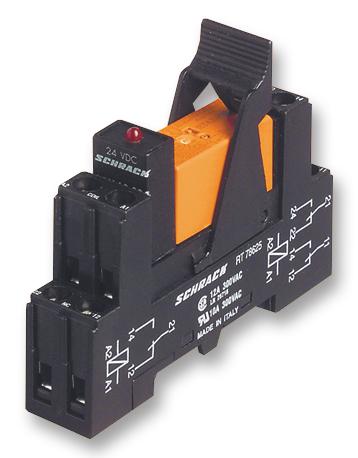

SCHRACK - TE CONNECTIVITY - 4-1415073-1 - Power Relay, SPDT, 24 VDC, 16 A, RT Package, DIN Rail, Non Latching
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 16A
- Product Range: RT Package Series
- Relay Mounting: DIN Rail
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 1.44kohm
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 16A
- Contact Current Max: 16A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 240V
- Current Rating: 16A
- External Depth: 69mm
- External Height: 77mm
- External Length / Height: 77mm
- External Width: 15.5mm
- Flammability Rating: UL94V-0
- Nom Operating Power: 400mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Relay Type: Power
- Release Time: 3ms
