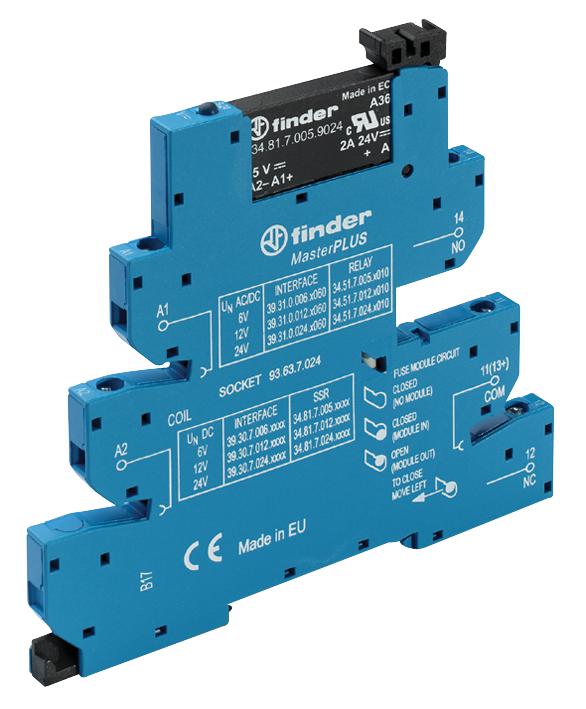

FINDER - 39.30.7.024.9024 - General Purpose Relay, 39 Series, Interface, SPST-NO, 24 VDC, 2 A
- Contact Configuration: SPST-NO
- Coil Voltage: 24VDC
- Contact Current: 2A
- Product Range: 39 Series
- Relay Mounting: DIN Rail
- Coil Type: DC Sensitive
- Contact Voltage VAC: -
- Relay Terminals: Screw
- Contact Voltage VDC: 24VDC
- Contact Material: -
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2019)
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 40A
- Contact Voltage DC Max: 24V
- Control Voltage DC Max: 26.4VDC
- Control Voltage DC Min: 19.2VDC
- Control Voltage Max: 26.4VDC
- Control Voltage Min: 19.2VDC
- Control Voltage Range: 19.2V DC to 26.4V DC
- Control Voltage Type: DC
- External Depth: 90.7mm
- External Height: 94.3mm
- External Width: 6.2mm
- Input Current: 10.5mA
- Load Current: 2A
- Nom Voltage: 24V
- Operating Voltage Max: 24VDC
- Operating Voltage Min: 1.5VDC
- Operating Voltage Range: 1.5V DC to 24V DC
- Relay Type: Interface
