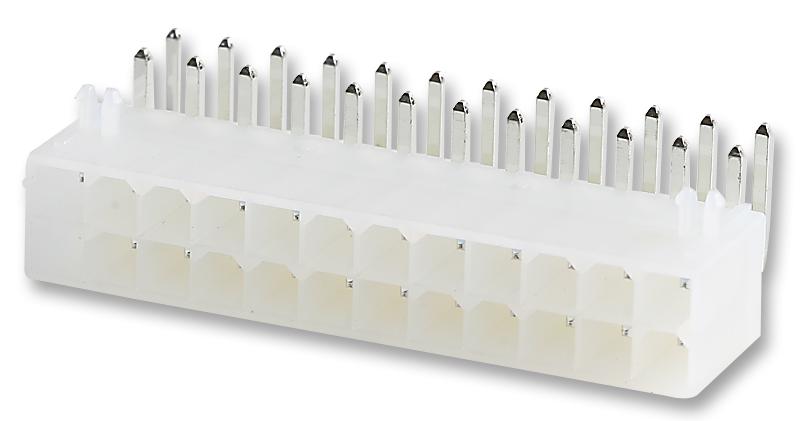

MOLEX - 39-30-1240 - Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 24 Contacts, Through Hole Right Angle
- Pitch Spacing: 4.2mm
- No. of Contacts: 24Contacts
- Gender: Header
- Product Range: Mini-Fit Jr. 5569 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass Alloy
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Connector Mounting: PCB Mount
- Contact Resistance: 10mohm
- Current Rating: 9A
- Dielectric Strength: 1500V/m
- Flammability Rating: UL94V-2
- Material: Clear nylon
- No. of Mating Cycles: 30
- No. of Rows: 2 Row
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 600V
- Working Voltage: 600V
