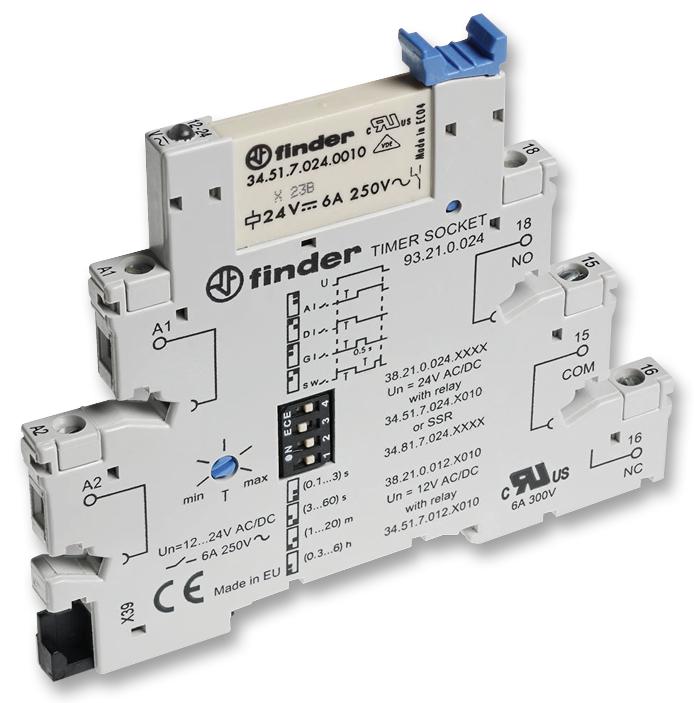

FINDER - 38.21.0.024.0060 - General Purpose Relay, 38 Series, Interface, SPDT, 24 V, 6 A
- Contact Configuration: SPDT
- Coil Voltage: 24V
- Contact Current: 6A
- Product Range: 38 Series
- Relay Mounting: DIN Rail
- Coil Type: AC / DC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Screw
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Approvals & Standards: CE, CSA, UL
- Average Power Consumption: 300mVA
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 6A
- Contact Current Max: 10A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Delay Time Range: 0.1s to 6h
- External Depth: 75.6mm
- External Height: 87.9mm
- External Length / Height: 87.9mm
- External Width: 6.2mm
- Nom Input Voltage: 24V
- Relay Type: Interface
- Termination Type: Screw
- Time Max: 6h
- Time Min: 0.1s
- Timing Adjustment: Screwdriver Slot
