description

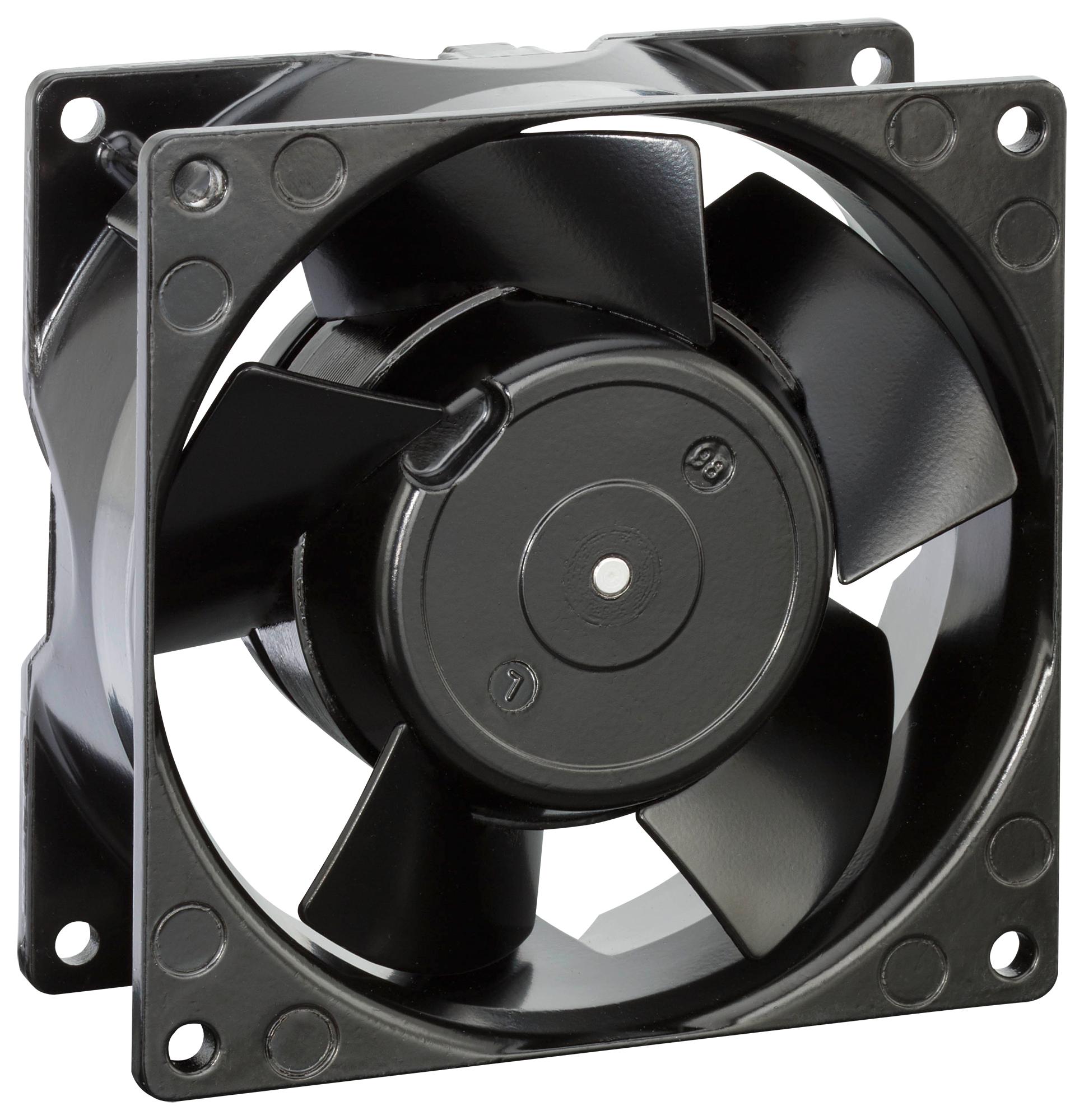

EBM-PAPST - 3650 - AC Axial Fan, 230V, Square, 92 mm, 38 mm, Sleeve Bearing, 44.1 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 92mm
- External Depth: 38mm
- Noise Rating: 36dBA
- Flow Rate - Imperial: 44.1cu.ft/min
- Flow Rate - Metric: 1.23m³/min
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 3000 Series
- Power Rating: -
- IP Rating: IP20
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, CSA, UL, VDE
- External Height: 92mm
- External Width: 92mm
- Fixing Centres: 81.5mm
- Frame Dimensions: 92mm x 92mm x 38mm
- Frequency: 50Hz
- Input Power: 12W
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Operating life Time: 52500h
- Power Consumption: 12W
- Speed Range Max: 2650rpm
- Type: Standard,92mm
