35202R7JT Res, 2R7, 5%, 1W, 2512, Thick Film CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :35202R7JT Code de commande:1265194

Prix:
Prix ​​promotionnel€0,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10637 unité)

Documenten en downloads

description

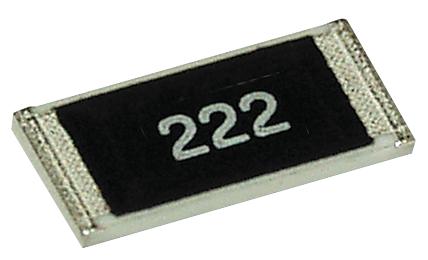

CGS - TE CONNECTIVITY - 35202R7JT - SMD Chip Resistor, 2.7 ohm, ± 5%, 1 W, 2512 [6432 Metric], Thick Film, High Power

  • Resistor Case Style: 2512 [6432 Metric]
  • Resistance: 2.7ohm
  • Product Range: 3520 Series
  • Voltage Rating: 200V
  • Resistor Element Material: Thick Film
  • Power Rating: 1W
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 350ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 0.6mm
  • External Length / Height: 6.4mm
  • External Width: 3.2mm
  • Full Power Rating Temperature: 70°C
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Overload Voltage: 400V
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 350ppm/°C
  • Temperature Coeff. -: 350ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 200V
