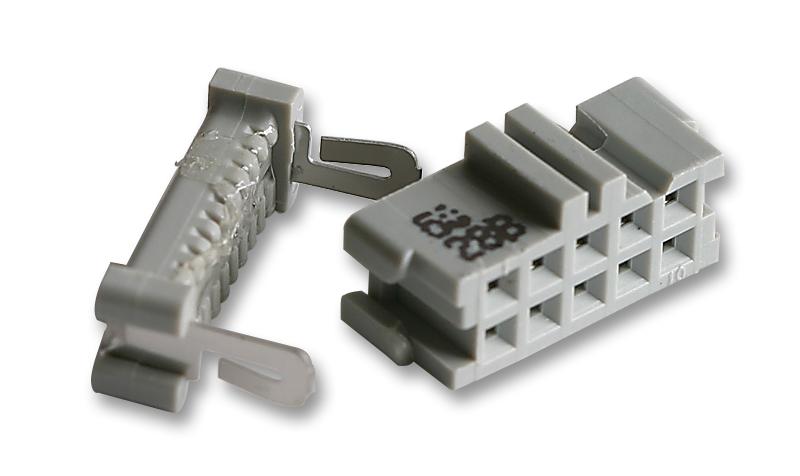

3473-6610 Socket, IDC, 10WAY 3M

3MUGS :3473-6610 Code de commande:525364

Prix:
Prix ​​promotionnel€4,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (945 unité)

Documents et téléchargements

description

3M - 3473-6610 - IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 10 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 10Contacts
  • Gender: Receptacle
  • Product Range: 3000 Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • Approval Bodies: BT
  • Colour: Grey
  • Contact Current Rating: 1A
  • Contact Resistance: 20mohm
  • Cut Thickness for PCBs Max: 1.6mm
  • Flammability Rating: UL94V-0
  • IDC Cable Pitch: 0.05"
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester (PBT)
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.89mm
  • Polarisation Type: Bump
  • Row Pitch: 2.54mm
  • Withstand Voltage: 1000V
  • Working Voltage: 350V
