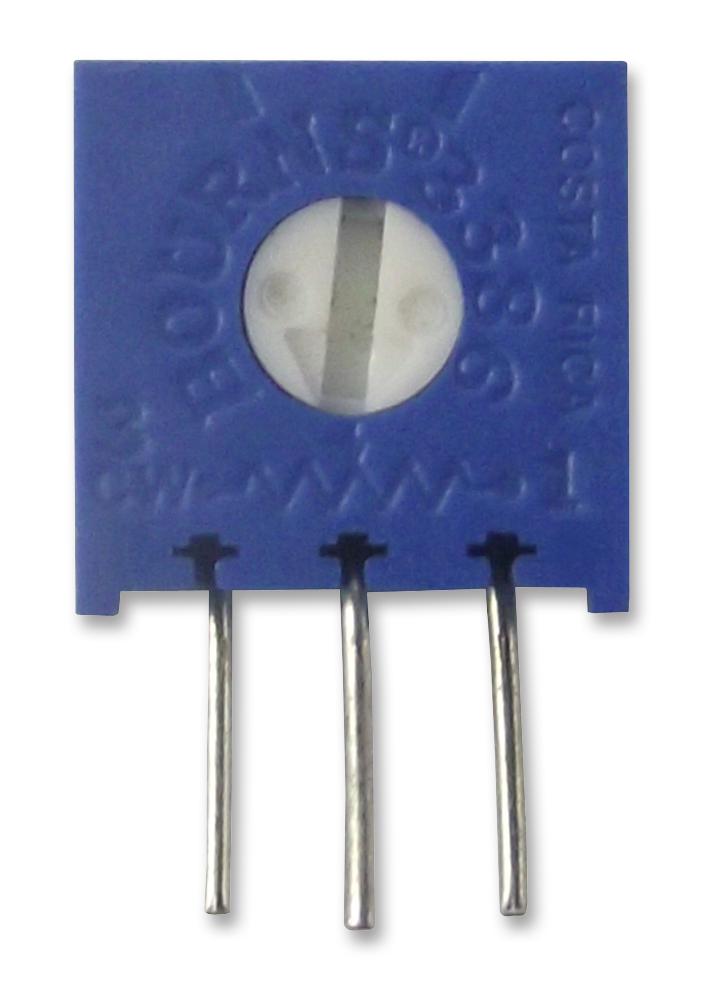

BOURNS - 3386X-1-104LF - Trimpot, Single Turn, Cermet, Side Adjust, 100 kohm, Through Hole, 1 Turns
- Track Resistance: 100kohm
- No. of Turns: 1Turns
- Potentiometer Mounting: Through Hole
- Product Range: Trimpot 3386 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Contact Resistance Variation +: 1%
- End Resistance: 2ohm
- External Length / Height: 9.5mm
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 900V
- Resistance: 100kohm
- Resistor Element Material: Cermet
- Rotation Mechanical Angle: 310°
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
