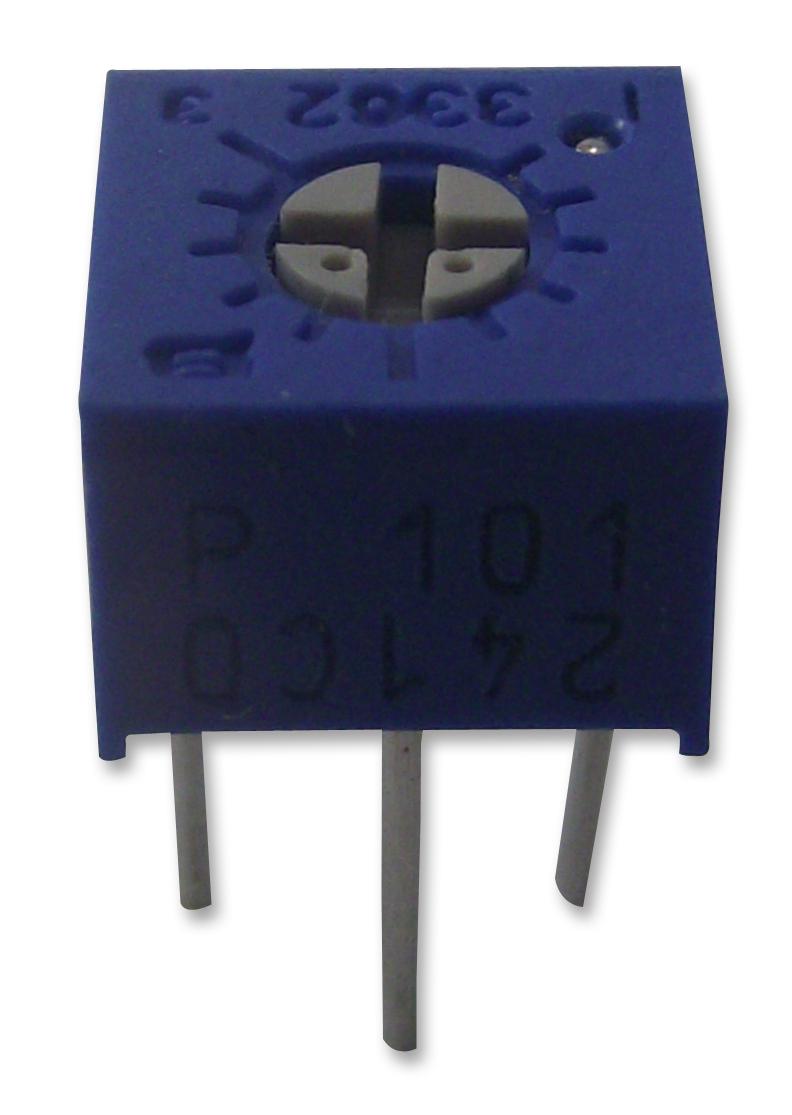

3362P-1-502LF Trimmer, 5K Bourns

BOURNS - 3362P-1-502LF - Trimpot, Single Turn, Cermet, Top Adjust, 5 kohm, Through Hole, 1 Turns

• Track Resistance: 5kohm
• No. of Turns: 1Turns
• Potentiometer Mounting: Through Hole
• Product Range: Trimpot 3362 Series
• Power Rating: 500mW
• Resistance Tolerance: ± 10%
• Temperature Coefficient: ± 100ppm/°C
• Automotive Qualification Standard: -
• MSL: -
• SVHC: No SVHC (15-Jan-2019)
• Adjustment Type: Screwdriver Slot
• Contact Resistance Variation +: 1%
• End Resistance: 50ohm
• External Length / Height: 4.7mm
• Full Power Rating Temperature: 70°C
• Lead Diameter: 0.46mm
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +125°C
• Proof Voltage: 900V
• Resistance: 5kohm
• Resistor Element Material: Cermet
• Rotation Mechanical Angle: 240°
• Temperature Coeff. +: 100ppm/°C
• Temperature Coeff. -: 100ppm/°C
• Tolerance +: 10%
• Tolerance -: 10%
• Track Taper: Linear
• Voltage Rating: 300V
• Voltage Rating V DC: 300V
